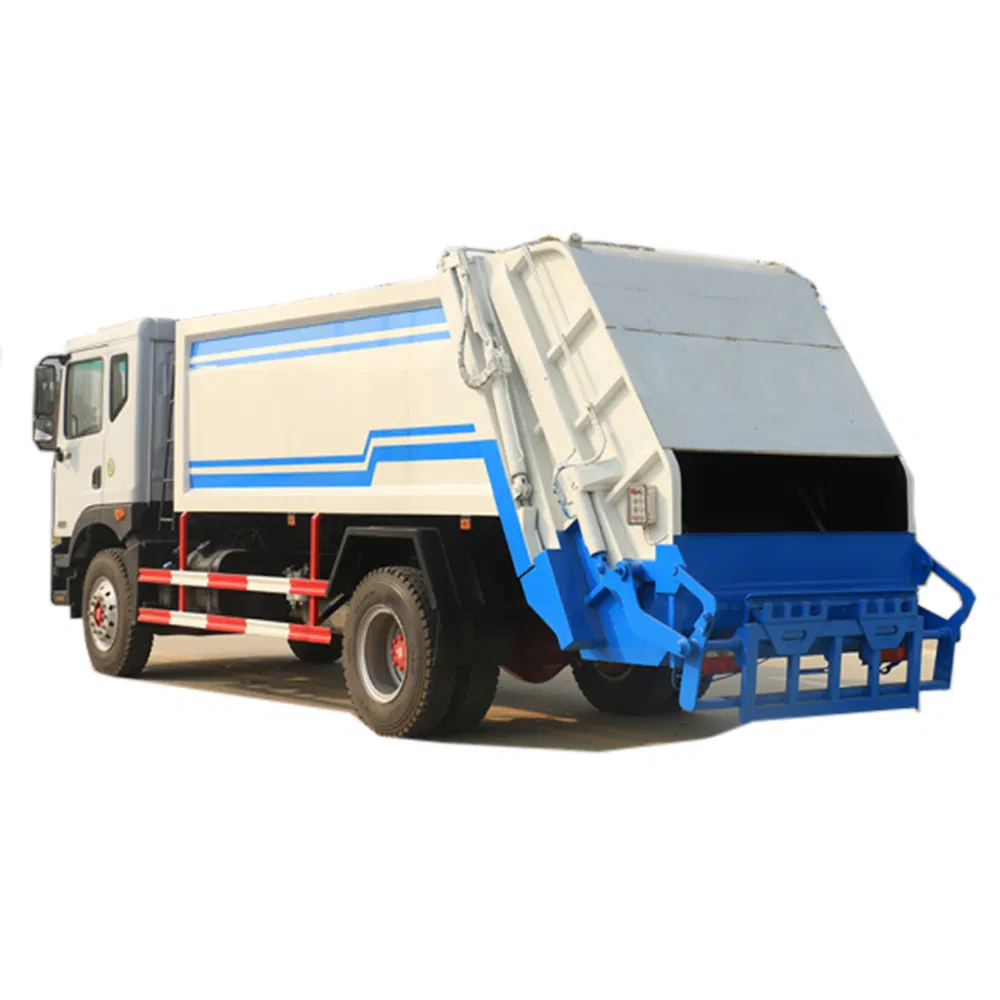

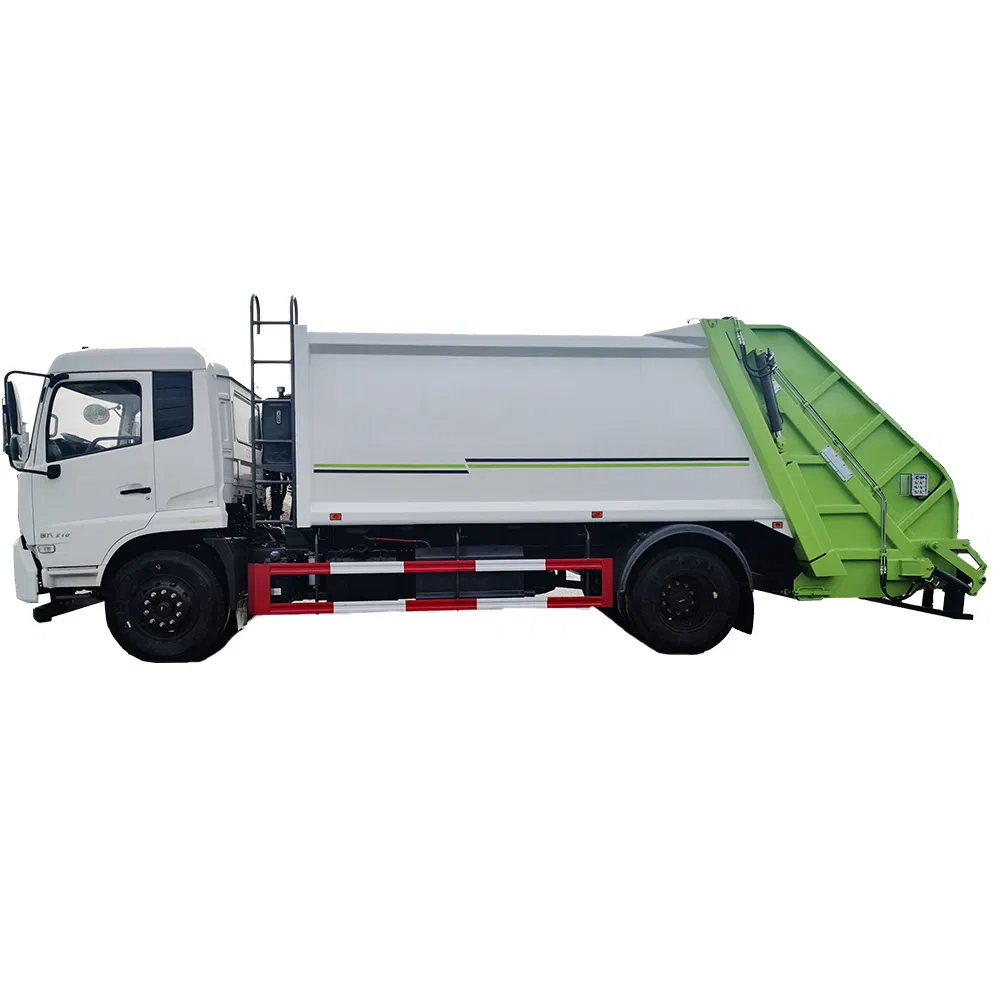

High-End Sanitation Compressed Garbage 4X2 Garbage Removal Truck
High-end sanitation compressed garbage 4x2 garbage removal truckCompressed garbage truck box volume can be choose; filling device feeding volume can be choose; the upper box body is made of carbon steel plate and high-strength manganese steel plate; the thickness of the box body is 4mm at the end an......
Send Inquiry
Product Description

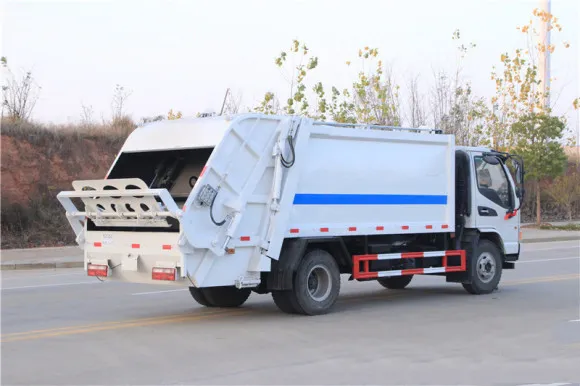

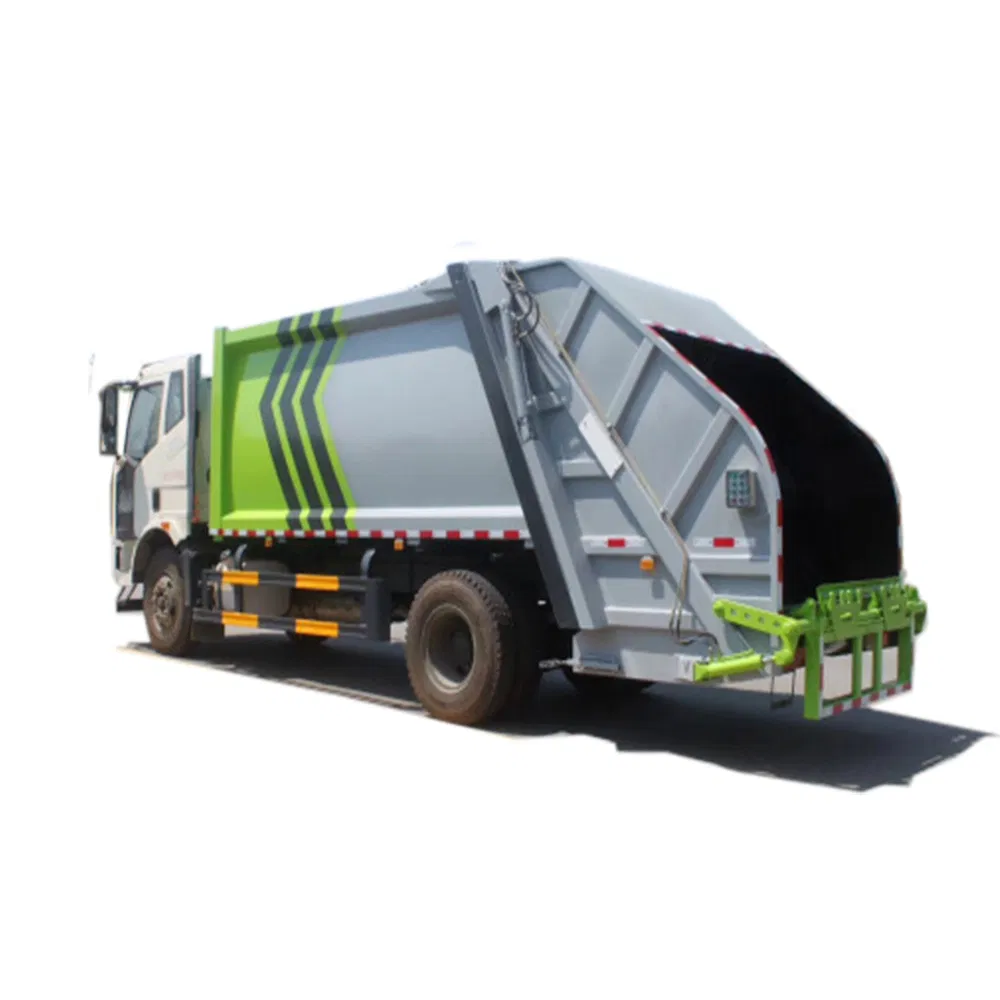

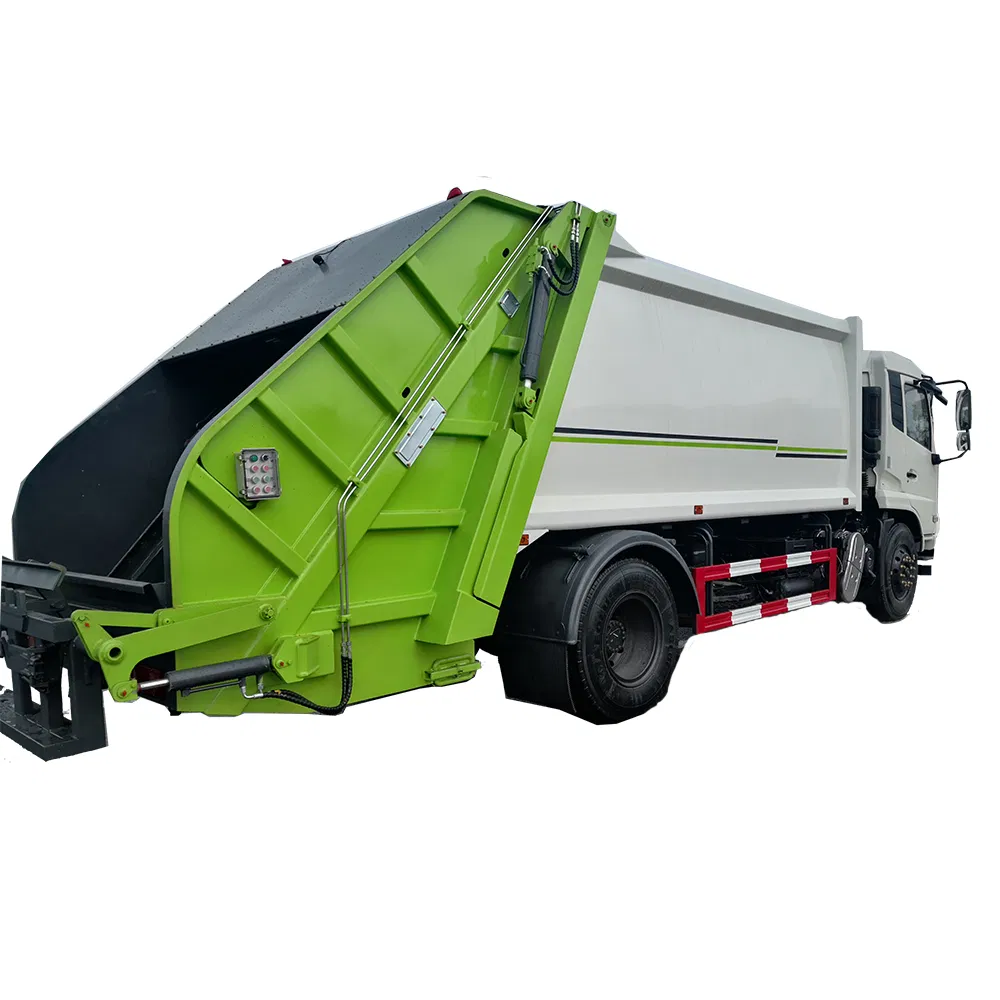

Compressed garbage truck box volume can be choose; filling device feeding volume can be choose; the upper box body is made of carbon steel plate and high-strength manganese steel plate; the thickness of the box body is 4mm at the end and 5mm at the bottom, and 16mm in part; The curved side panels and roof of the box body increase the rigidity and strength of the box body structure. With hydraulic cover, with rear flip mechanism, with hanging bucket rack, can hang national standard trash can.
>>>Technical parameters
| Cab | Flat top | Horsepower (PS) | 115PS |
| Dimensions (mm) | 5650×2050×2400 | Driving form | Steering wheel / right drive |
| Self weight (kg) | 4200 | Total weight (kg) | 8495 |
| Production cycle | 30 days | Warranty&certificate | Have |
| Cab | Dongfeng Little Dorica D6 Cab | Reversible with air conditioning | |
| Front axle | 2.5 tons | ||
| Rear axle | 5 tons | ||
| Gearbox | 5-speed gearbox | ||
| Vehicle frame | Through reinforced girder | ||
| Tire | 7.50R16 type steel tire 6psc | ||
| ABS | Have | ||
| Drive type | 4*2 | ||
| engine | 4DX23-120 | ||
| Emission Standards | Euro 3 | ||
| brake | Drum | ||
| Material and thickness of garbage bin | Q345 low alloy anticorrosive and wear-resistant plate (manganese steel) 4mm on the side, 4mm on the bottom, 4mm on the side plate | ||
| Box shape | Curved box | ||
| Emergency stop button | Have | ||
| Safety control system | Have | ||
| Recovery tank | Have | ||
| Tail electric control | Have | ||
| Remarks: It adopts domestic famous brand oil cylinders, high-density and high-pressure oil pipes, multi-way valves and oil pumps. The compression trash can is a conjoined type, which works with an external power supply, reverses the feed, has a compression push plate, and has a locked door at the rear. | |||
>>>Certificate

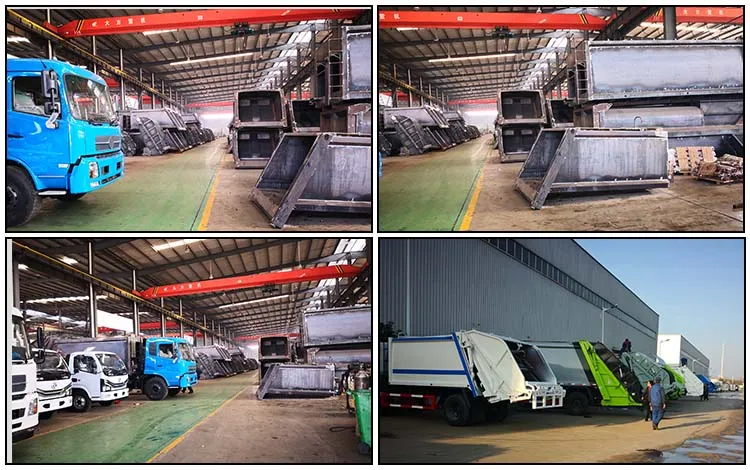

>>>Workshop
Any item you have interest, welcome inquiry ↓

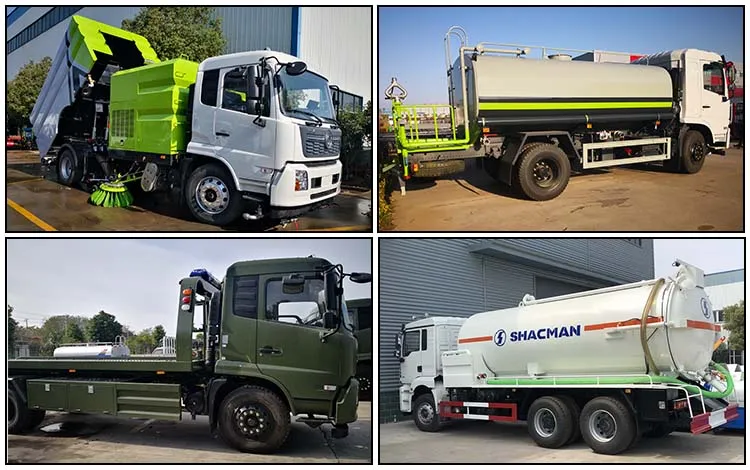

Road sweeper / Sprinkler / Road wrecker / Sewage truck
>>>FAQ:
1.Payment term: T/T & L/C
2.Warranty : 12 months (normal situation)
3.Delivery time: 15 working days (big quatity need negotiate)
4.MOQ: 1 unit
5.Specification: as your request or refer to the quotation sheet for different product parameters.
6.color: factory recommend or as your needs.
7.Quality control: 1)Various production line processes.2)QA & QC quality control and inspection
3)welcome visit our factory at anytime.
8. 24 hours online for your services.
Welcome consult recent best offer !
