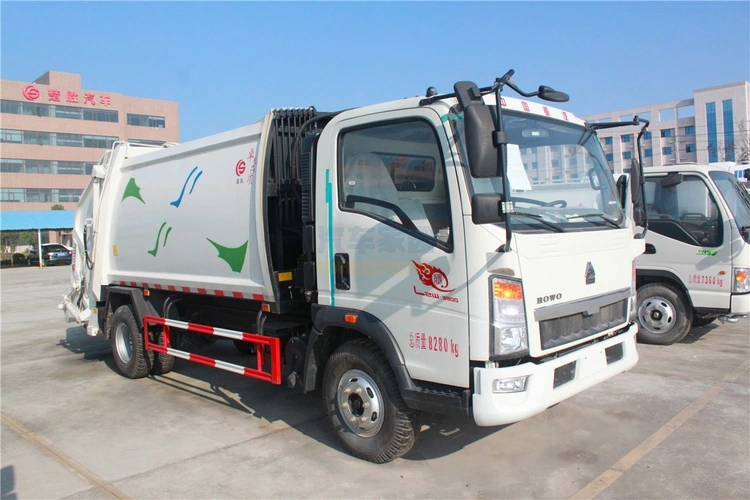

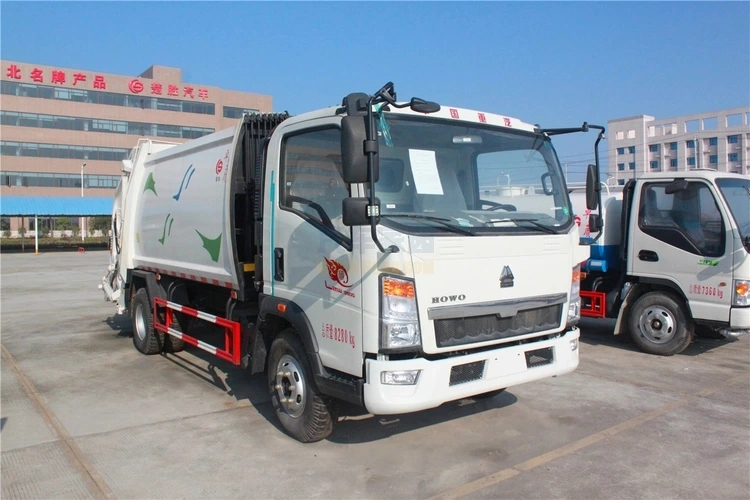

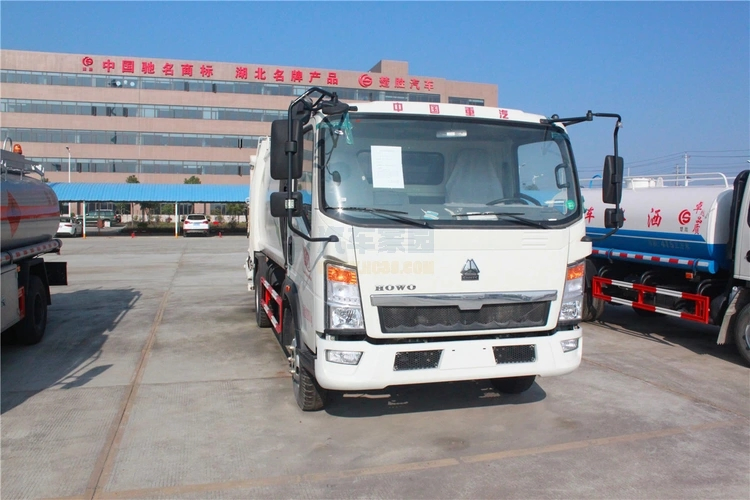

HOWO Garbage Compcator Truck with 8cbm Tank
Howo 4x2 Garbage Compcator Truck.We also have 4x4 model and bigger lifting capacity model to meet different client's requirement.Driving type: LHD (RHD for option)Emission standard: Euro 2/Euro 3/Euro 4/Euro 5 for option. Chassis modelZZ1107G451CD1RChassis manufacturerHowoCabinSingle row with s......
Send Inquiry
Product Description
Howo 4x2 Garbage Compcator Truck.
We also have 4x4 model and bigger lifting capacity model to meet different client's requirement.
Driving type: LHD (RHD for option)
Emission standard: Euro 2/Euro 3/Euro 4/Euro 5 for option.
Main Exporting Products
Heavy-duty Trucks:
Tractor Truck, Cargo Truck, Mining Dump Truck, Dump Truck, Concrete Mixing Truck, Water Spray Truck, Sewage Suction truck, Oil Tank Truck, Barbage Truck, Fire Rescue Truck, Semi Trailer
Light-duty Trucks:
Cargo Truck, Box Truck, Special Using Truck
Construction Machinery:
Truck Crane, Wheel Loader, Road Roller, Excavator, Motor Grader, Paver, Tower Crane, Asphalt Mixing Plant & Concrete Mixer, Scissor Type Hydraulic Lift Platform, Aluminum Alloy Hydraulic Platform
We also have 4x4 model and bigger lifting capacity model to meet different client's requirement.
Driving type: LHD (RHD for option)
Emission standard: Euro 2/Euro 3/Euro 4/Euro 5 for option.
| Chassis model | ZZ1107G451CD1R | |||
| Chassis manufacturer | Howo | |||
| Cabin | Single row with sleeper bed, power steering, a/c | |||
| Wheel base (mm) | 4500 | |||
| Overall dimension (L*W*H)(mm) | 8995x2496x3320 | |||
| Total mass (kg) | 16000 | |||
| Curb weight (kg) | 7740 | |||
| Rated payload weight (kg) | 8065 | |||
| Engine | Engine model | ISF3.8s3154 | ||
| Engine make | CUMMINS | |||
| Rated power | 115kw / 154hp | |||
| Displacement | 3760 | |||
| Emission standard | Euro 3 | |||
| Type | Diesel engine, 6-cylinders in line, supercharged water cooled, direct injection | |||
| Axle | Front axle | Cast steel hub reduction front driving axle with | ||
| Rear axle | STR16, Hub reduction rear driving axle with wheel differential lock, ratio 5.73 | |||
| Transfer case | Model | WLY6T53 | ||
| High speed ratio | 1.00 | |||
| Low speed ratio | 1.75 | |||
| Gear box | Manual, 6 speed forward, 1 speed reverse | |||
| Brake | ||||
| Service brake | Dual-circuit pneumatic brake | |||
| Parking brake | Energy-accumulating spring air cut-off brake | |||
| Auxiliary brake | Engine exhaust brake | |||
| Suspension | Front | Longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar, 9 | ||
| Rear | Longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar, 9+6 | |||
| Electrical system | Voltage(V) | 2x12 | ||
| Battery capacity(A.h) | 165 | |||
| Clutch | Single dry plate, air booster, GF420 | |||
| Steering | ZF8098 | |||
| Tire type | 8.25R16 | |||
| Tire number | 6pcs and one spare tire | |||
| Performance parameter | Minimum ground clearance | 314mm | ||
| Minimum turning diameter(m) | 15 | |||
| Max speed(km/h) | 67 | |||
| Maximum grade ability (%) | 48 | |||
| Parking brake gradient (%) | 20 | |||
| Fuel tank volume (L) | 400 | |||
| Fuel consumption per 100km (L) | 34 | |||
| Garbage Compcator Truck | ||||
| Garbage Tank volume(cbm) | 8 CBM | |||
| Lifting time of filler (s) | 3 CBM | |||
| Time of discharge (s) | ≤40 | |||
| Pressure of fluid system(Mpa) | 20 | |||
| The color will be designed on basis of your requirements. | ||||
| Rear LED pilot lamp | Self unloading box body | |||
