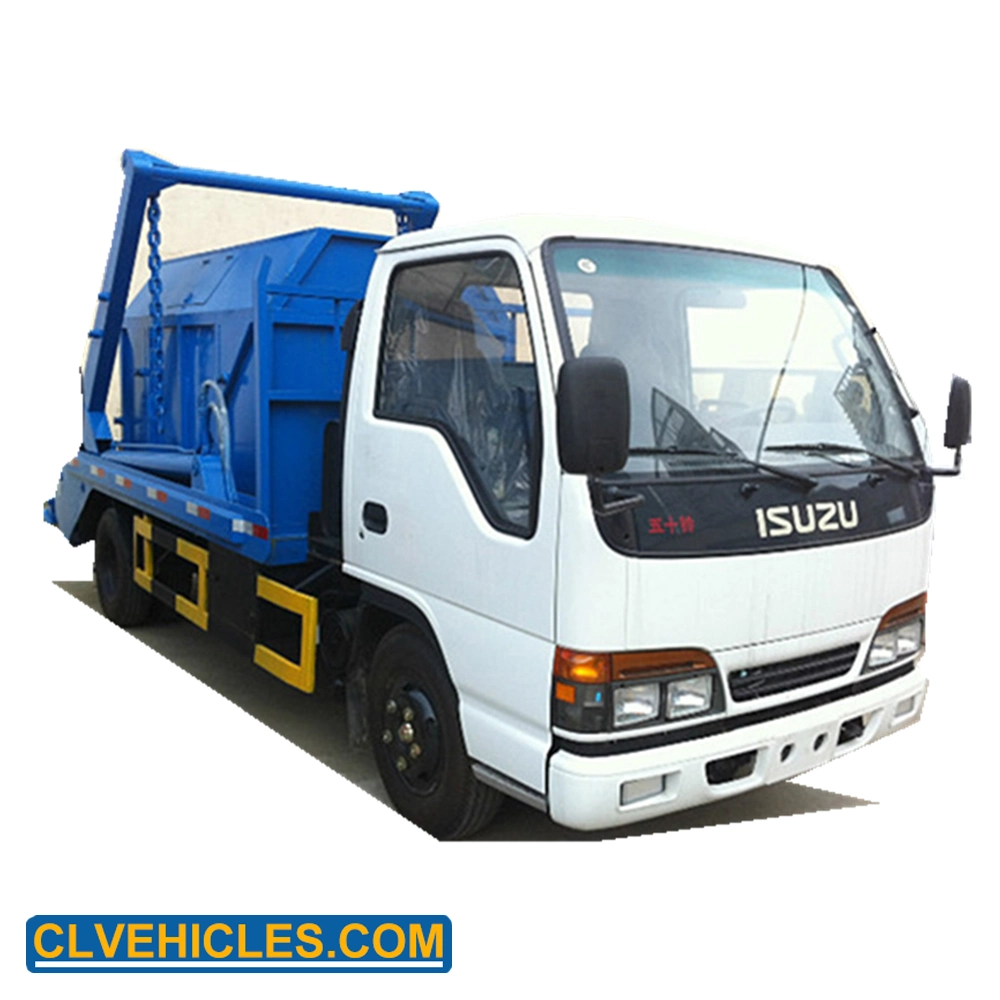

Japan Brand 4tons Swing Arm Garbage Truck Skip Loader Garbage Collection Truck
Japan Brand 4tons Swing Arm Garbage Truck Skip loader garbage collection truckFunction introductionSwing arm type garbage truck applies to the national general garbage bucket, with self-unloading function, hydraulic operation, garbage bucket can be hung from the crane, the swing arm once work cycle ......
Send Inquiry
Product Description
Japan Brand 4tons Swing Arm Garbage Truck Skip loader garbage collection truckFunction introduction
Swing arm type garbage truck applies to the national general garbage bucket, with self-unloading function, hydraulic operation, garbage bucket can be hung from the crane, the swing arm once work cycle time: 60S. The car is characterized by the separation of the bucket from the body of the vehicle, which enables a single vehicle to work in conjunction with multiple buckets and recycle it, which fully improves the vehicle's transport capacity. It is particularly suitable for short-distance transport, such as the cleanup of urban waste by the sanitation department. , transportation, etc.
Brand recommendation:DONFENG FOTON JAC SINOTRUK HOWO SHACMAN BEIBEN
Driving type: 4x2 6x4 6x2 8x4
Capacity optional :3-18 cbm accept garbage trucks tops customization
Steering: Left hand drive /Right hand drive
TEM | UNIT | PARAMETER | ||
Vehicle |
| Swept body garbage truck | ||
Overall dimensions | mm | 5995x1880x2150 | ||
Tank volume | m3 | 5 | ||
GVW | kg | Appro×5500 | ||
Curb weight | Appro×3000 | |||
Payload | Appro×5500 | |||
Wheel base | mm | 3360 | ||
Suspension | 1250/2400 | |||
F/R track base | 1940/1860 | |||
Approach/departure angle | ° | 25/21 | ||
Max speed | km/h | 95 | ||
Axle Load | kg | 2.5/3 | ||
Tire specification | 7.00-15 / 7 Units | Number of axles | 2 | |
Engine model | 4JB1CN | Diesel, 4 Cylinder, direct line, water cooling | ||
Engine performance | ml/kw | 2700/72 | ||
Steering | Power | Transmission | 5 speed with over drive, 5F&1R | |
Cab passenger | 3 | Electric System | 24V | |
Tank material |
| Carbon steel, side thickness 3mm, botton thickness 4mm | ||
Standard configuration | 1. Hydraulic system powered by trucks chassis PTO 2. Body with rear lifting system to handle garbage containers capacity 10m3 3. Body painted 1 coat anti-corrosion primer and 2 coats synthetic paint | |||

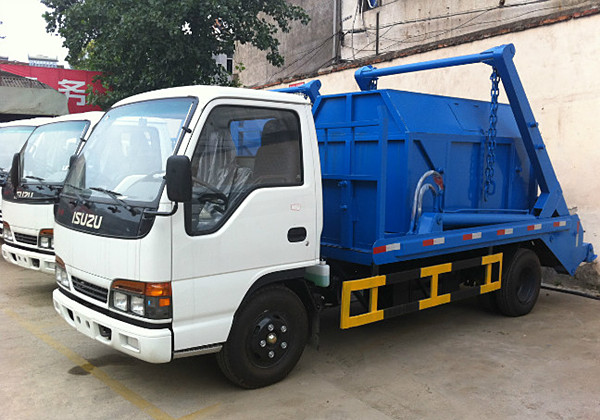

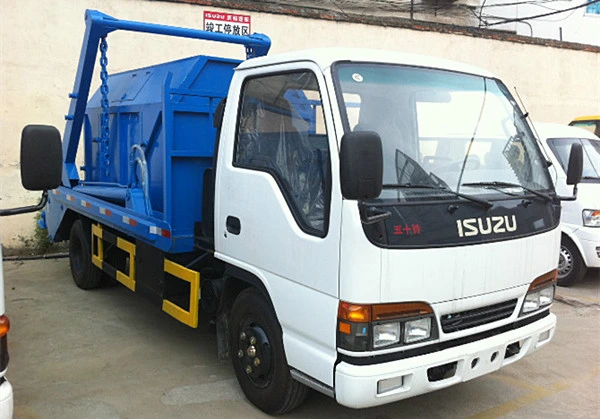

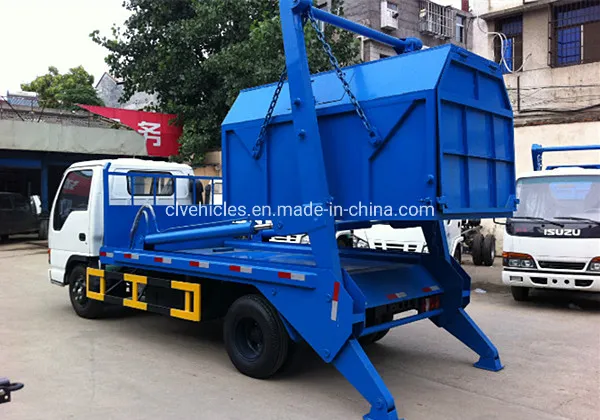

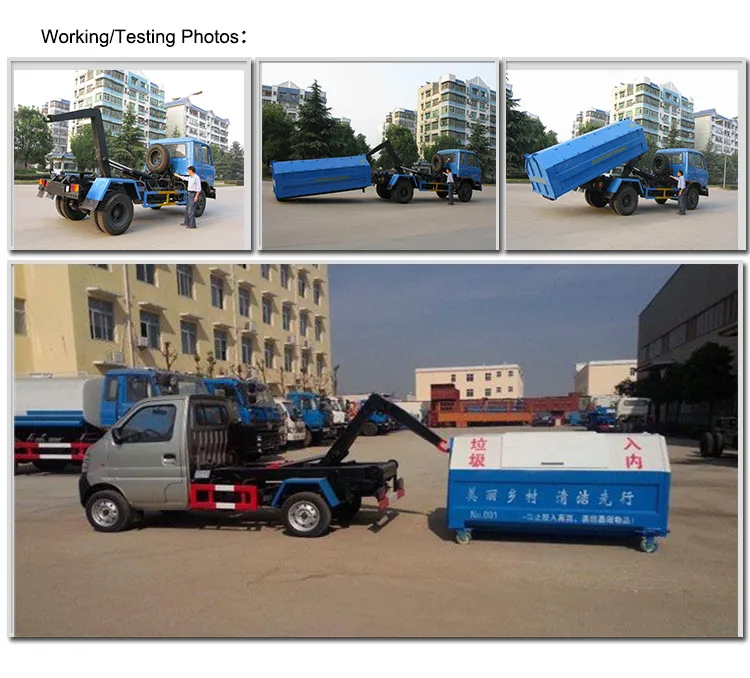

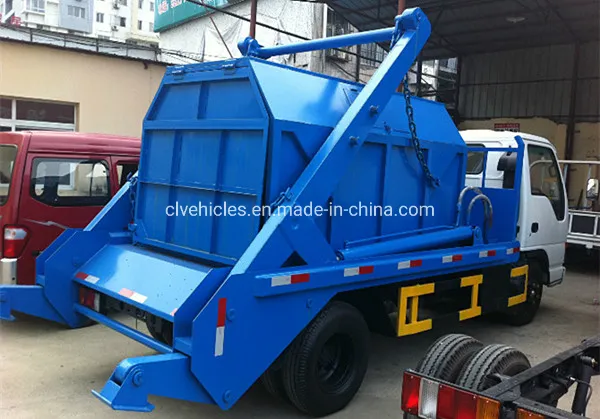

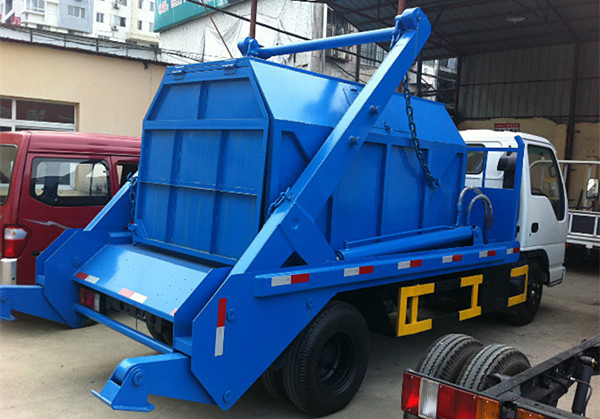

4tons skip loader garbage truck Detail photo show
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
our company truck pass ISO,3C,ASME certification.

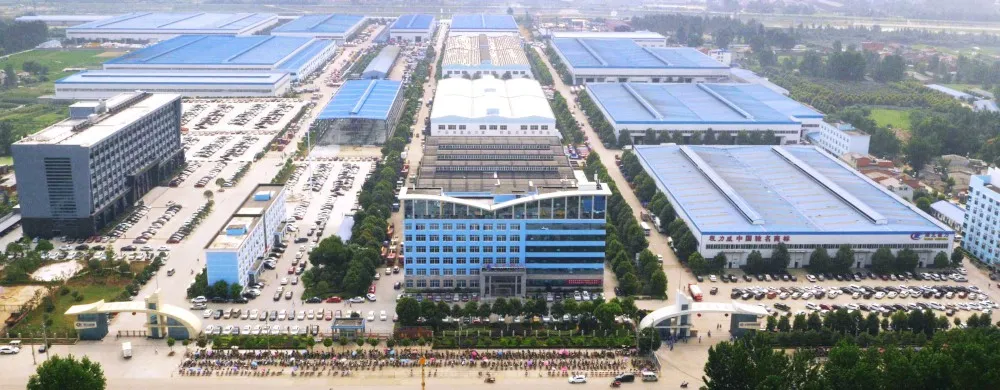

Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
~If you have any question or optional require, please feel free to chat me at below
