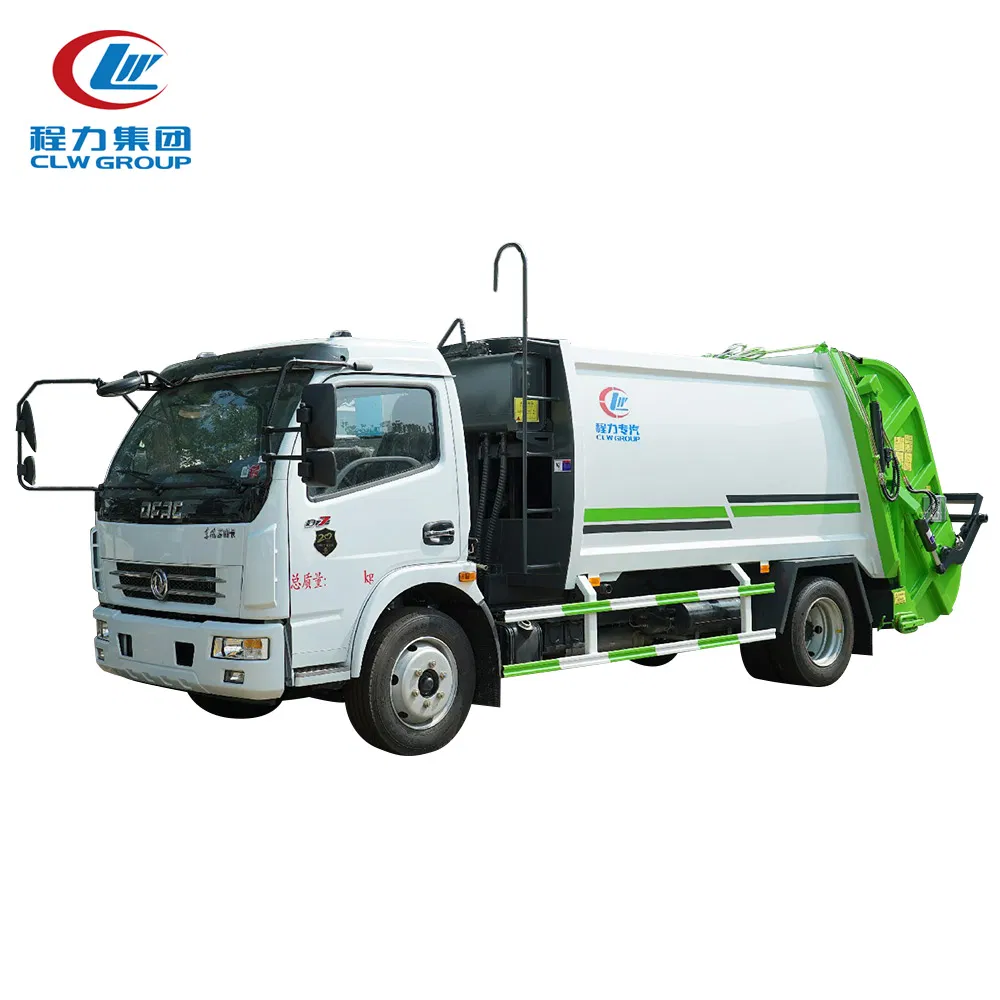

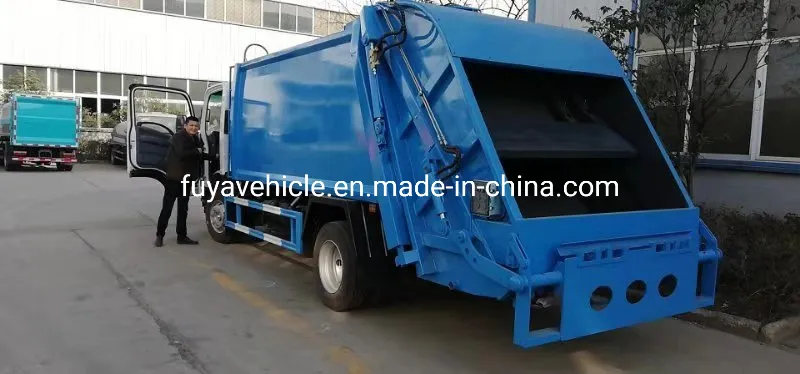

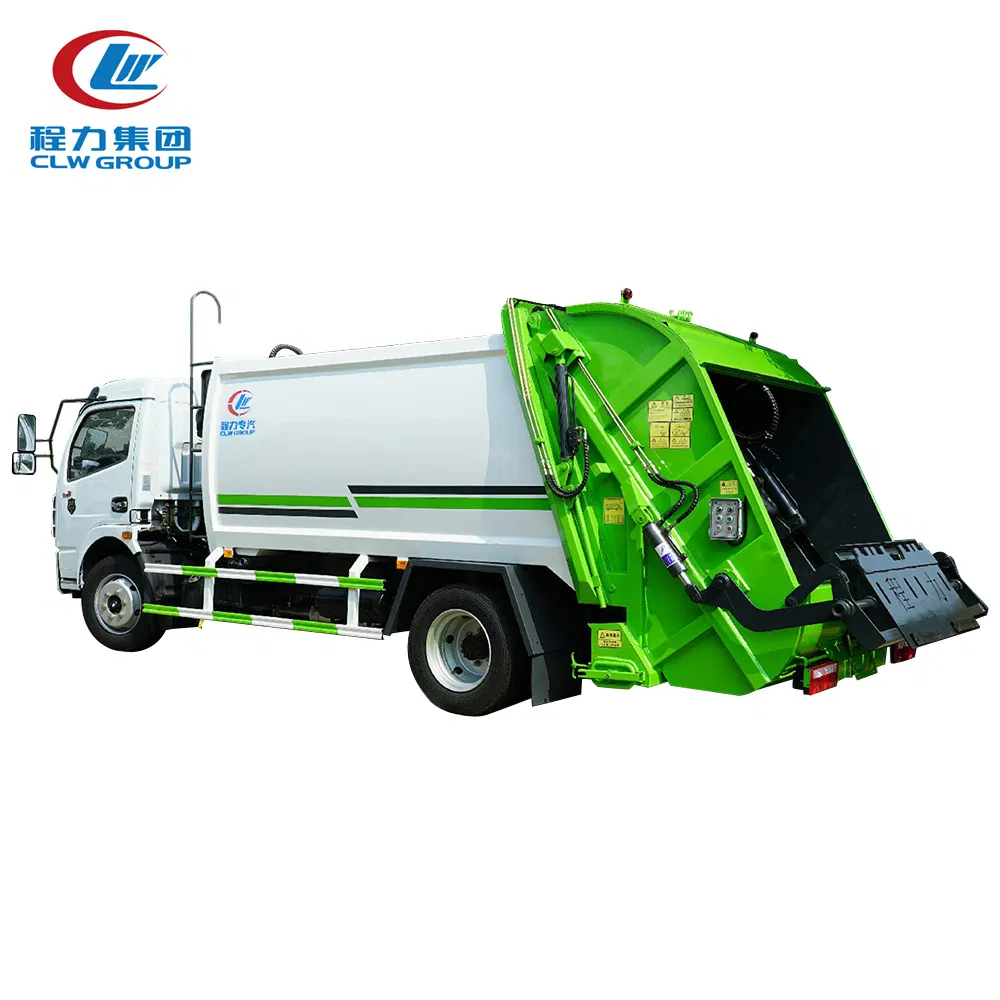

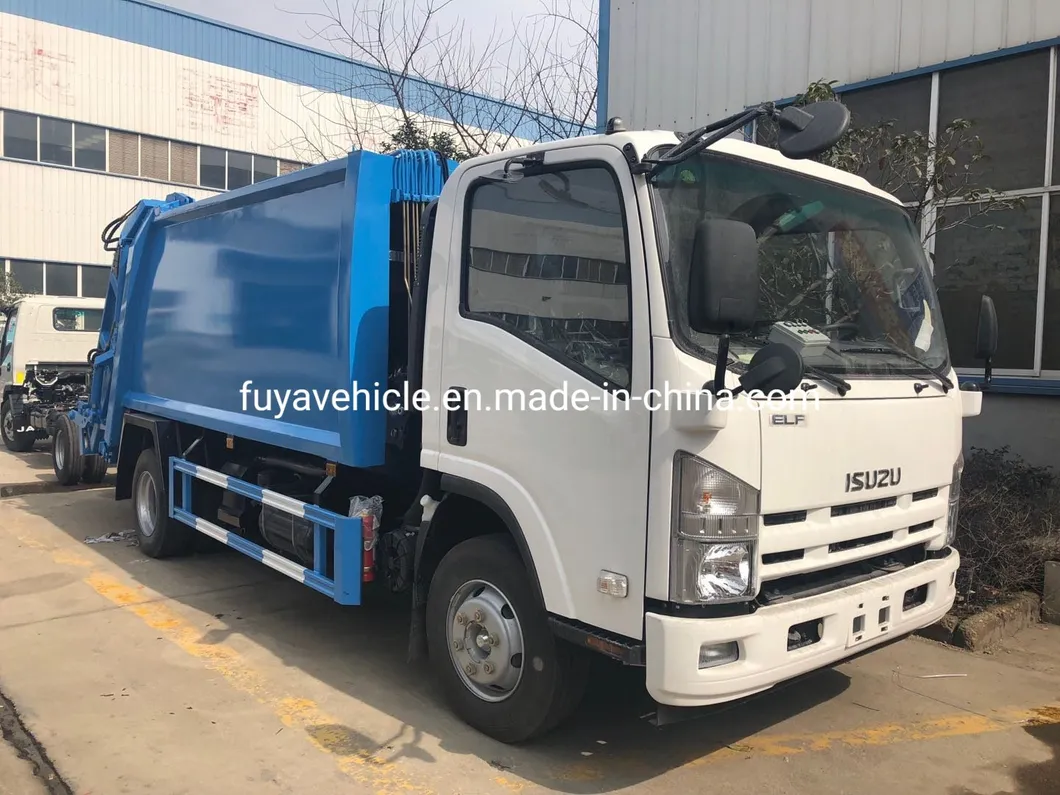

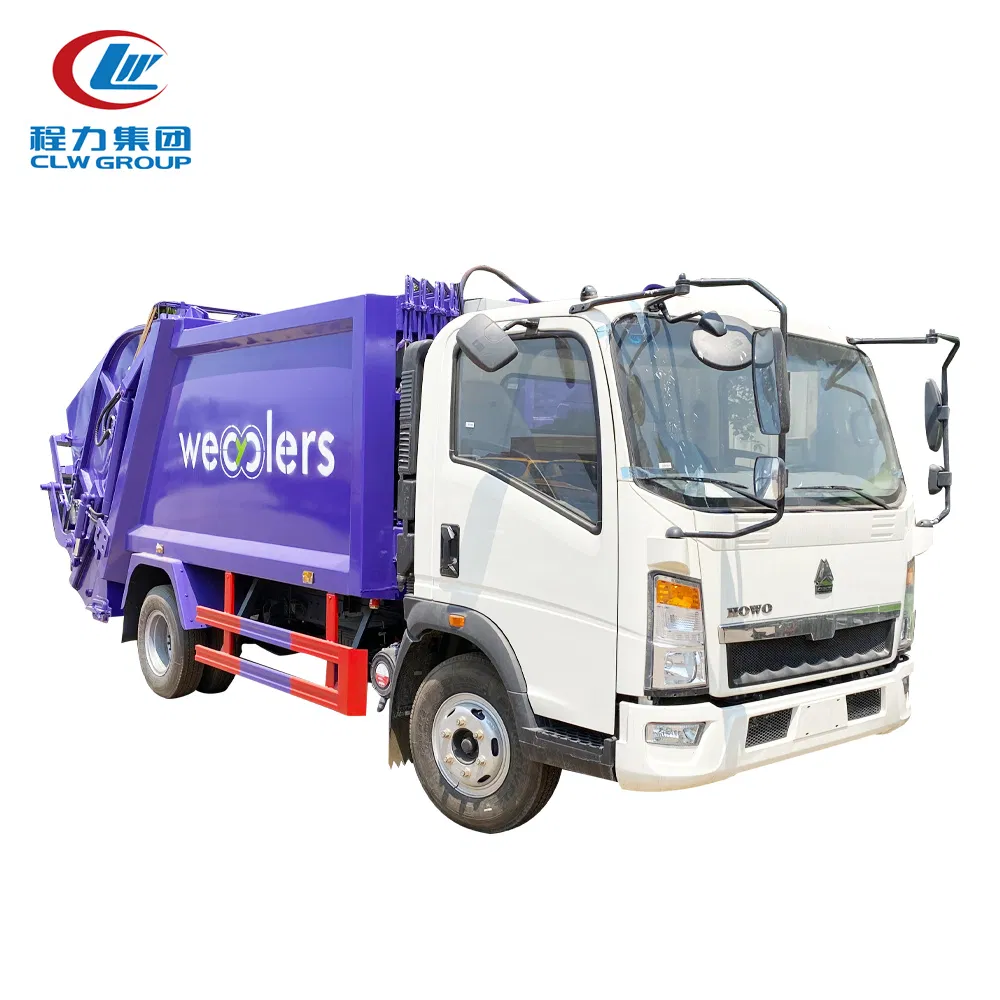

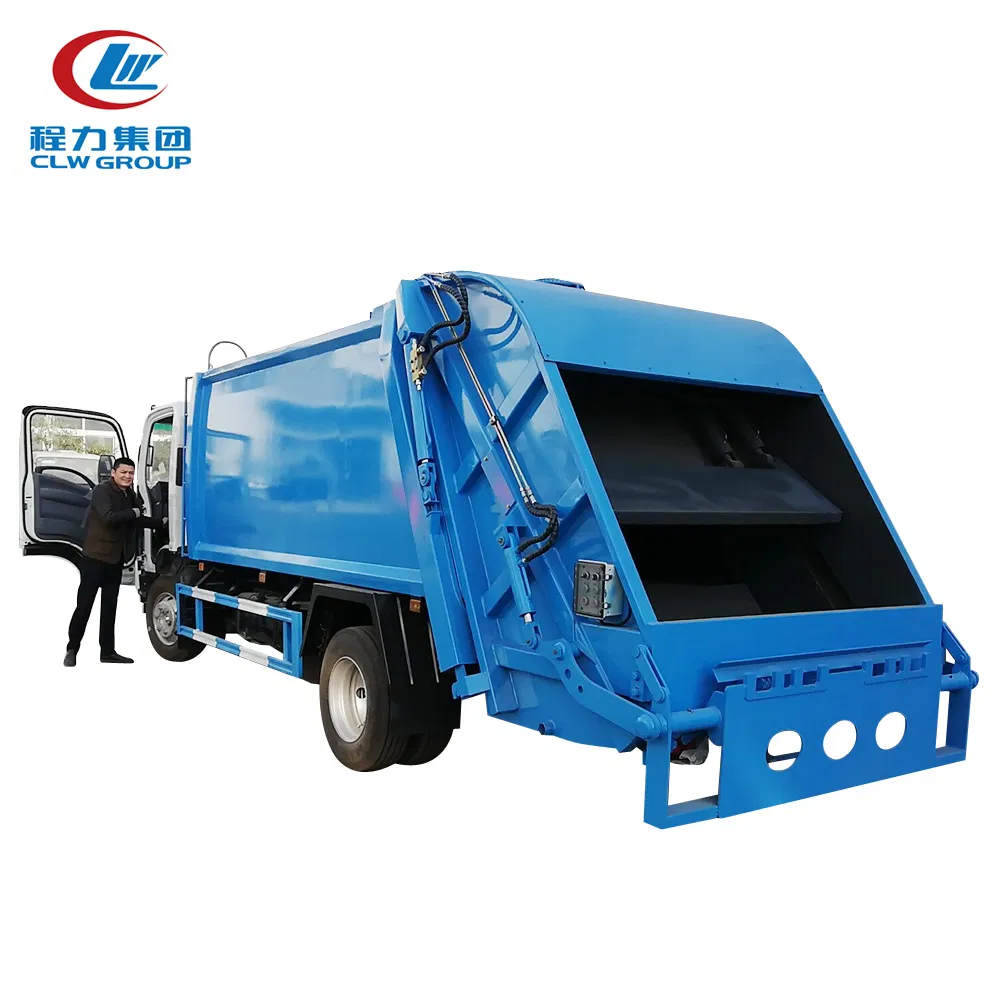

Qinglin 6tons 7 Cbm 8000 Liters Compression Garbage Truck for Bucket Collection
Product DisplayIntroduction of compress garbage truckThe compress garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc. The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that emp......
Send Inquiry
Product Description
| Product Display |
The compress garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with
excellent compaction ratio. It is ideally suited to municipal applications where large amounts of mixed industrial and domestic refuse is to be collected
Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder, fully sealed. It can compact and dump the garbage automotically.The sewage will flow in the compartment completely to avoice re-pollute during transportation.
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 2 cbm to 25 cbm.
| Specification of 6-8cbm Box of Compactor Garbage Truck | ||
| Garbage Bin | Capacity | 6-8 CBM |
| Size (length x width x height) | 4900x2050x2150 mm or as designation | |
| Thickness | Side 4mm, Bottom 5mm | |
| Material | Q345 carbon steel | |
| Design | Whole unit with Leakage Proof Design | |
| Recovery water tank | 200L | |
| Filling parts volume | 600L | |
| Filling time | 8-10s | |
| Compression cycling time | 30s | |
| Discharging type | Push and self-discharging | |
| Discharging time | 30s | |
| Hydraulic system pressure | 16Mpa, 160Bar | |
| Control type | Electric control with manual control | |
| Plat Form | 2 side for 2 worker for foot transport | |
| Ways of Loading | Rear Loading with optional Bucket Lifting Style | |
| Lifting capacity of turnover mechanism | ≥800KG | |
| Garbage Compact Ratio | 1/3 - 1/4 | |
| Control System | One control Panel on the back, One Control system in back of Cabin | |
| Fire Extinguisher | 1 unit | |
| Warranty | 1 year | |
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. 2. Automatic loading, compressing and discharging, all handled by 1 person. 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation Dependable Security. 5. Electrical Control Panel for compacting system. | |
Chengli Special Automobile Corporation Limited, which was appointed by the Development and Reform Committee of China.
Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Hubei Fuya Vehicle Co., LTD belongs to Chengli Special Automobile Corporation Limited(CLW Group), specialized as export department.
- Established from 2004.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience.
- Turnover 250 million and Export 20million annually.
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck sold to 90 countries.
- Cooperates with DONGFENG,SINOTRUCK HOWO,SHACMAN,FOTON,FAW,BEIBEN,JAC ETC.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10.High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

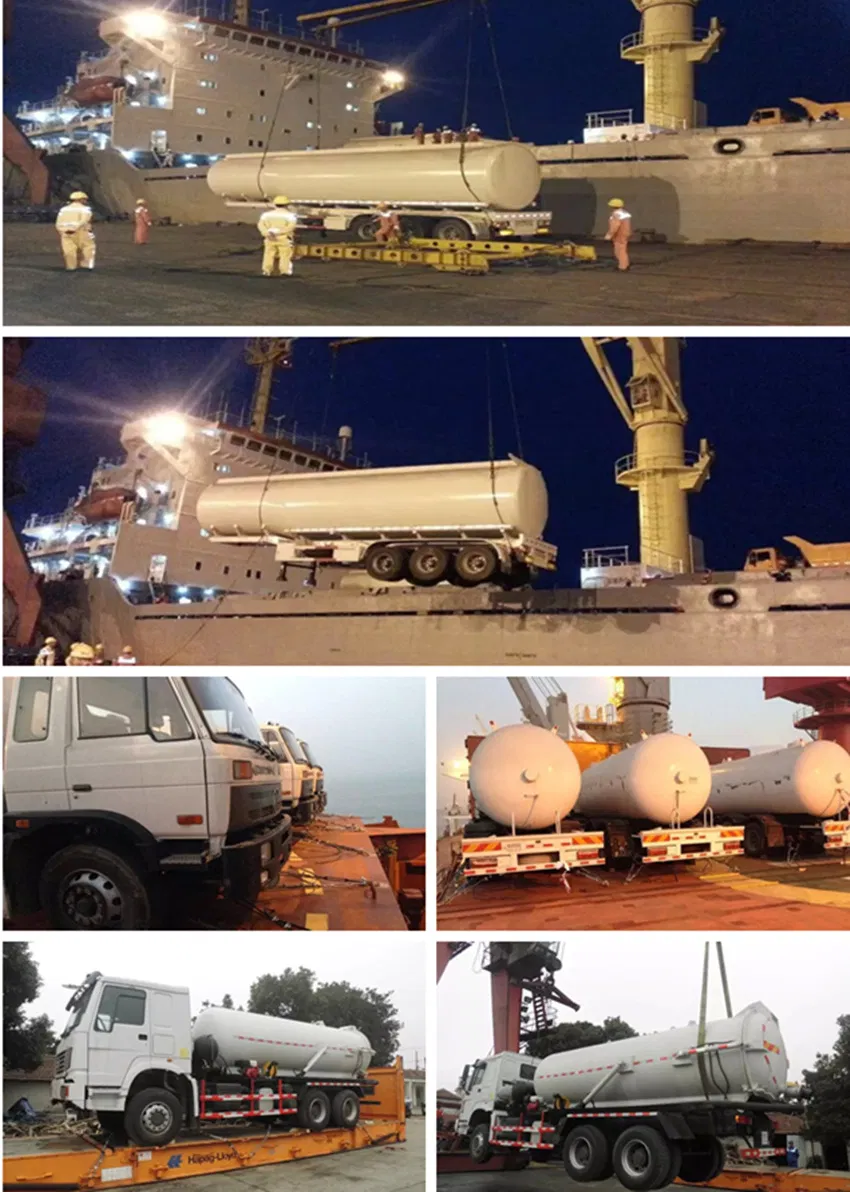

Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO, Bulk, container or suitable shipment.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
