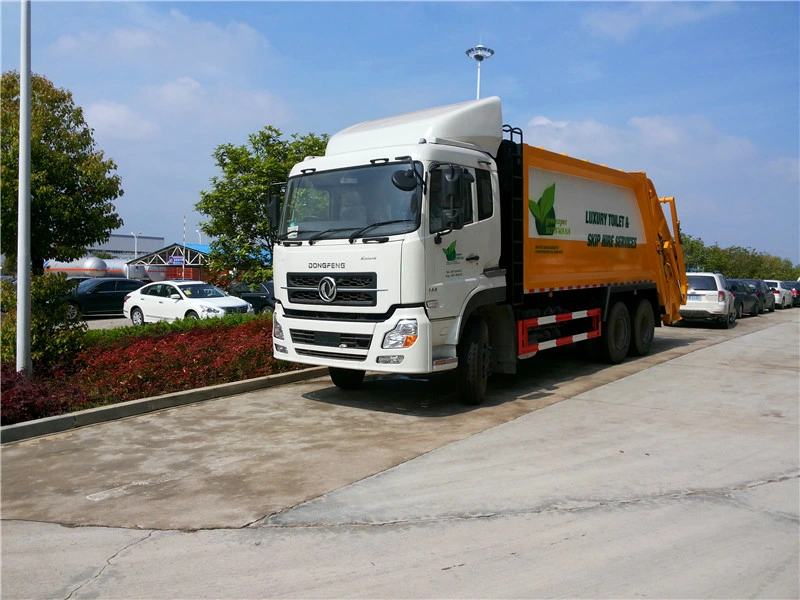

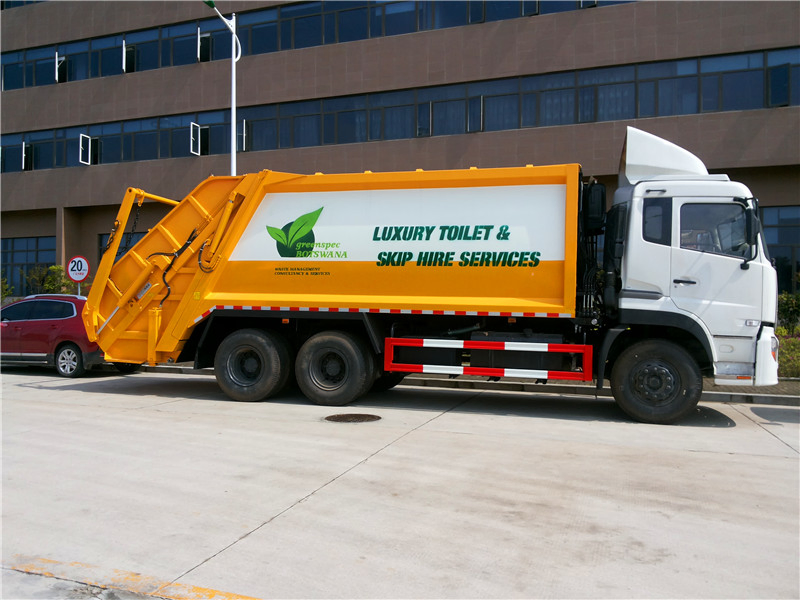

Rhd Small Compactador Trash Compactor with Garbage Bin Lifting Truck

Product Description

RHD small compactador, trash compactor with garbage bin, garbage bin lifting truck

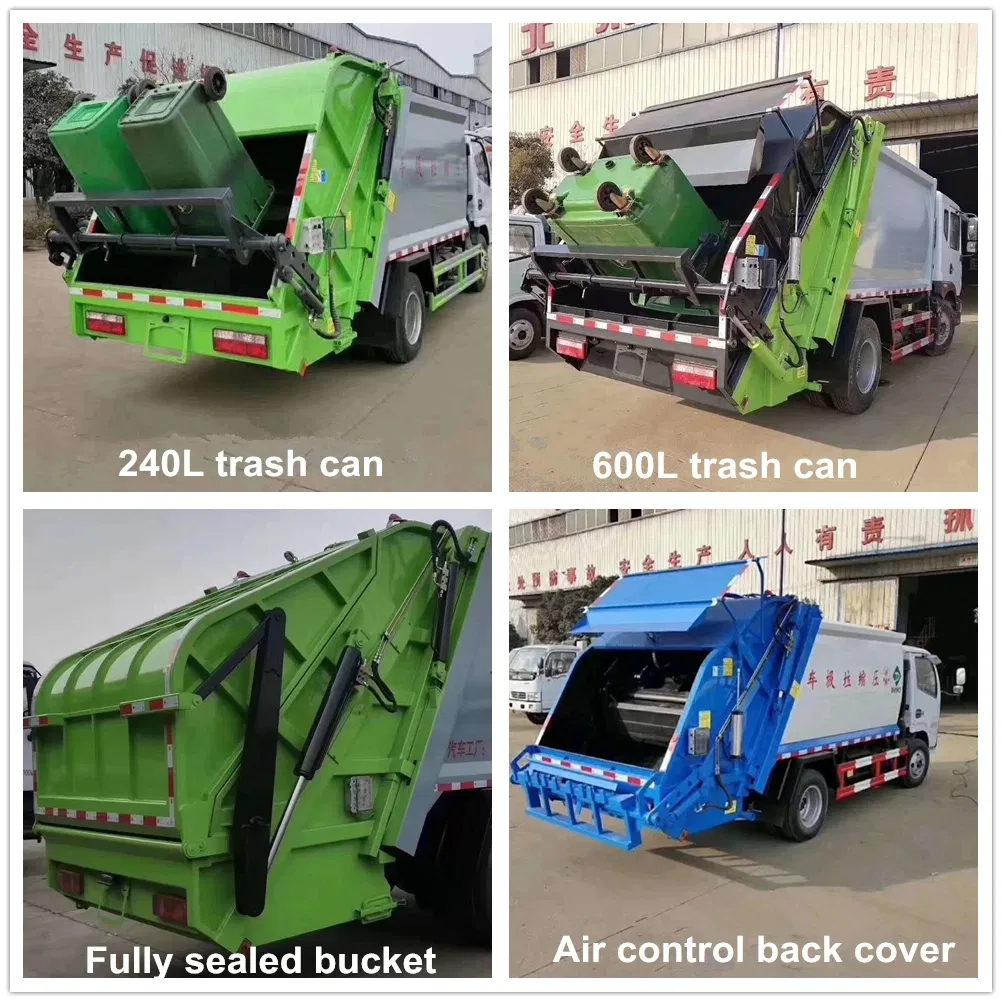

garbage truck is composed of sealed garbage compartment, hydraulic system and operating system.Vehicle is fully sealed type, compression, to dump all, compression in the process of sewage into the water, more thoroughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people, the key parts adopt imported components, high pressure, good sealing, convenient operation, safety, etc.Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.

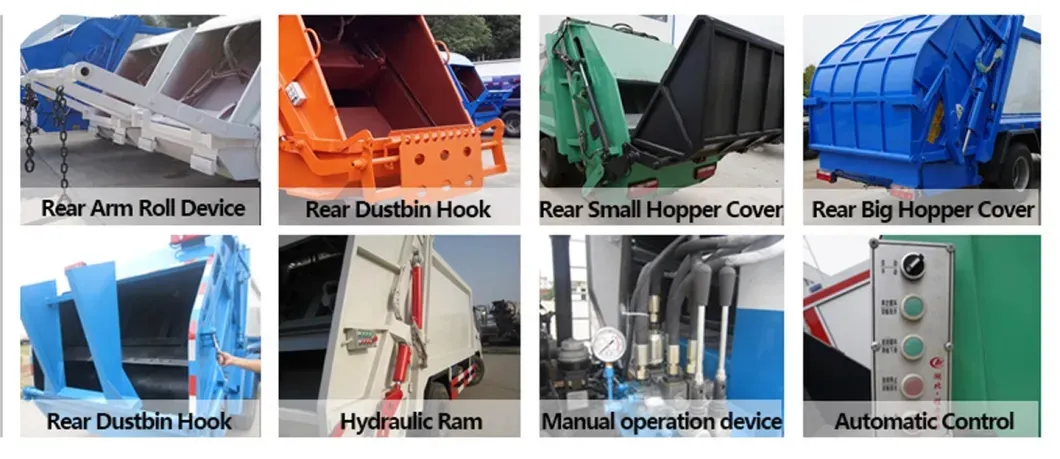

RHD small compactador, trash compactor with garbage bin, garbage bin lifting truck

Item		Unit	Parameter
Overall dimensions		mm	10150X2450X3450
Fact cubage		L	18000l
Curb Weight		Kg	Appro×7600
Body internal dimensions		mm	/
Wheel base			4500+1350
Max speed		Km/h	90
Engine	Model		Cummins
	Displacemenet/power		5900/240
	Type		Six cylinder, in-line, turbocharged, intercooled
	Max torque/speed		/
Transmission			8-speed
Tire specification			10.00R20
Drive axle			5T
Front axle			10T*2
Color			Specified by customer
Body Special function
1		Body material		Side 5mm, bottom 5mm
2		Sewage tank		200L
3		Filler capacity		1.2M3
4		Fill time		20-30s
5		Discharge time		40-50s
6		Hydraulic pressure		16MPa

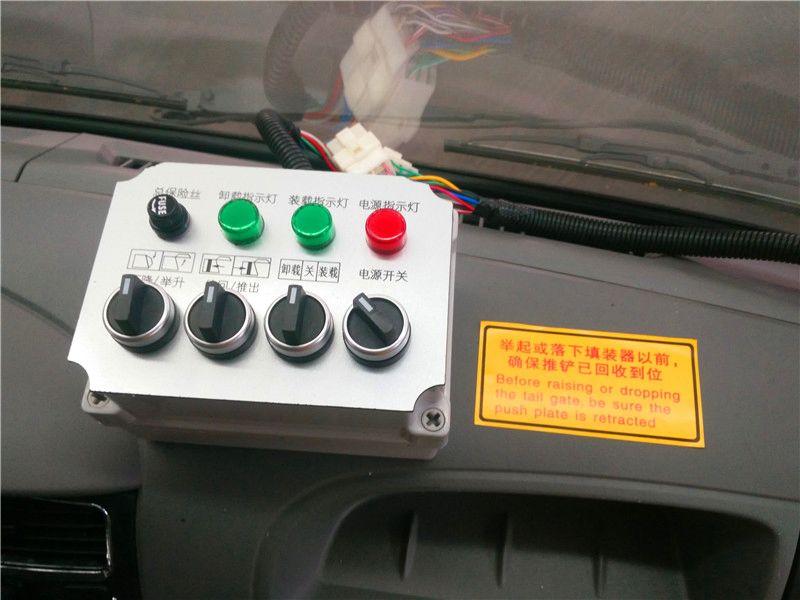

7		Control		Electronically controlled with manual
8		Others		With turnover system
9		Accessory		2 garbage bin
