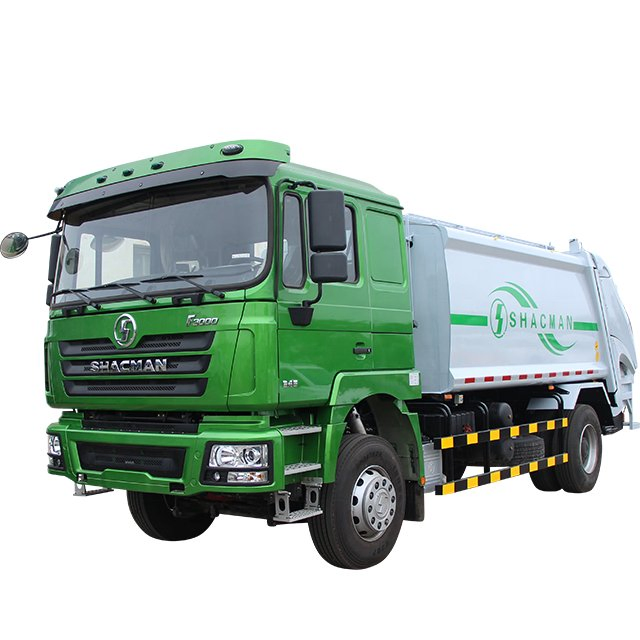

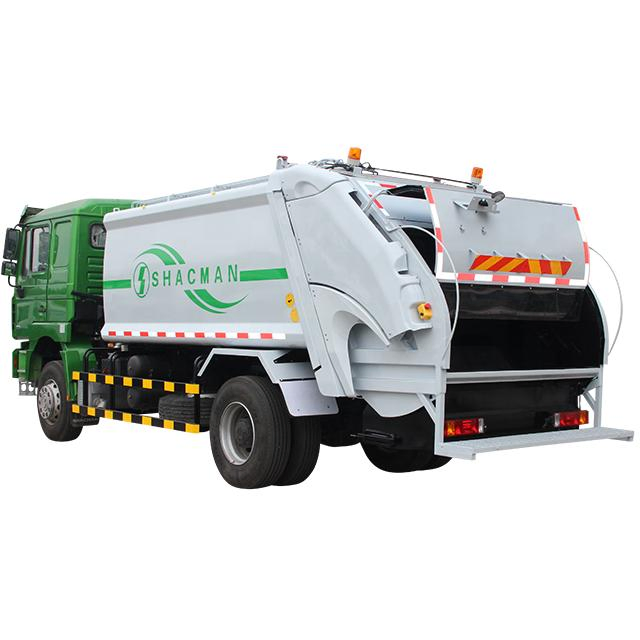

Shacman Rear Loading Type 8m3 Waste Collection Garbage Compactor Truck
Shacman Rear Loading type 8m3 Waste Collection Garbage Compactor Truck1. Simple garbage collection method;2. High compression ratio and large load;3. Automation: the use of computer control system can set 2 modes of automatic and semi-automatic operation, which can not only reduce the labor intensit......
Send Inquiry
Product Description
Shacman Rear Loading type 8m3 Waste Collection Garbage Compactor Truck
1. Simple garbage collection method;
2. High compression ratio and large load;
3. Automation: the use of computer control system can set 2 modes of automatic and semi-automatic operation, which can not only reduce the labor intensity of the sanitation workers, but also greatly improve the working environment;
4. Good economy: when the special equipment works, the computer control system controls throttle automatically;
5. Double insurance system: the operation system has dual functions of computer control and manual operation, so as to greatly protect and improve the utilization rate of vehicles;

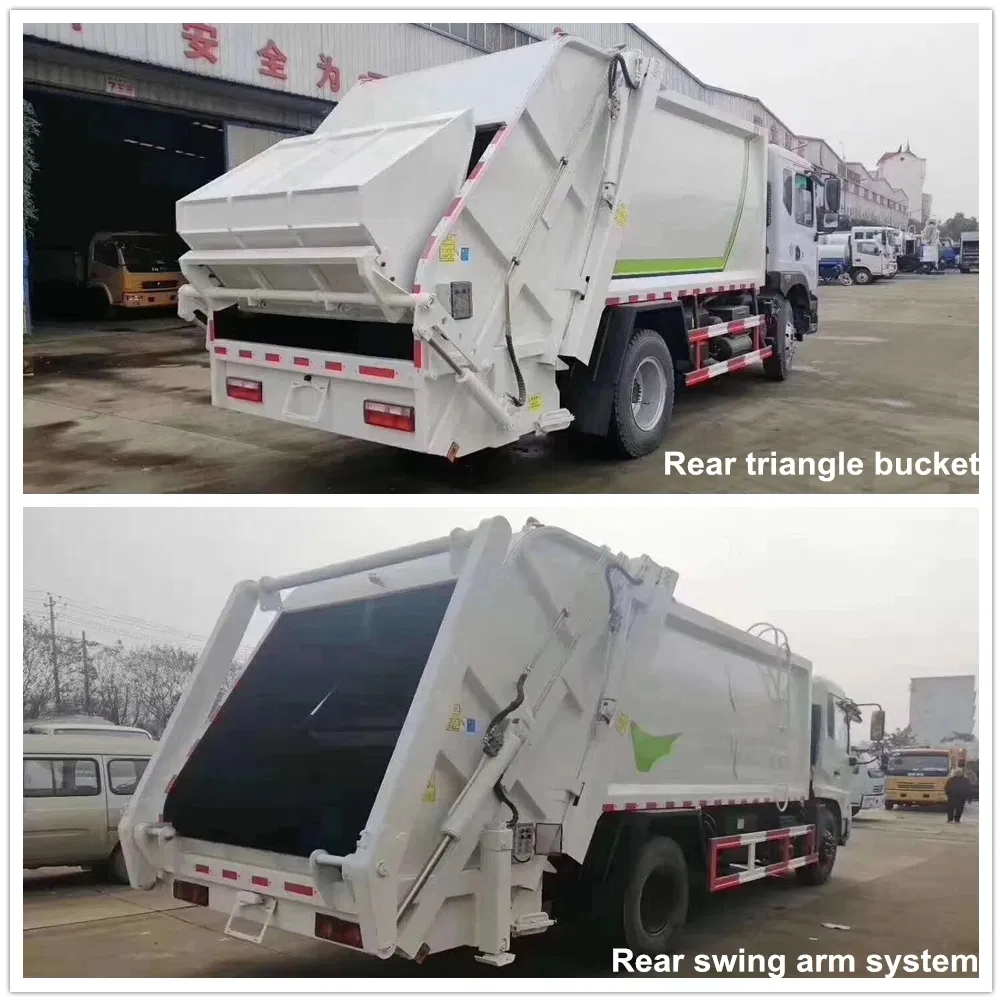

6. Turnover device: optional turnover device with garbage bucket or hopper.
Shacman Rear Loading type 8m3 Waste Collection Garbage Compactor Truck
| SHACMAN Rear loaded RHD 4X2 15m3-18m3 new dump garbage compactor 14-16 ton refuse collection truck for sale | ||
| # | Descriptions | Specifications and types |
| General | Truck Brand | CLW BRAND |
| Chassis Brand | Shacman | |
| Approx. Dimension | 9790*2500*3300 mm | |
| GVW./Kerb Wt. | 25000 / 15030 kg | |
| Cab | Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 6X4,left hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | Weichai engine | |
| Power | 270 Ps / 199 KW | |
| Displacement | 7140 ml | |
| Emission Standard | Euro II or EURO III or Euro IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 4375+1350 mm / 3 | |
| Tyre Specfication | 11.00R20 16PR,11.00-20 18PR | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 92 km/h | |
| Paint | Automative metallic paint | |
| Superstructure and the main characteristic | Garbage box Capacity | 15-18CBM |
| Garbage box Material | Carbon Steel | |

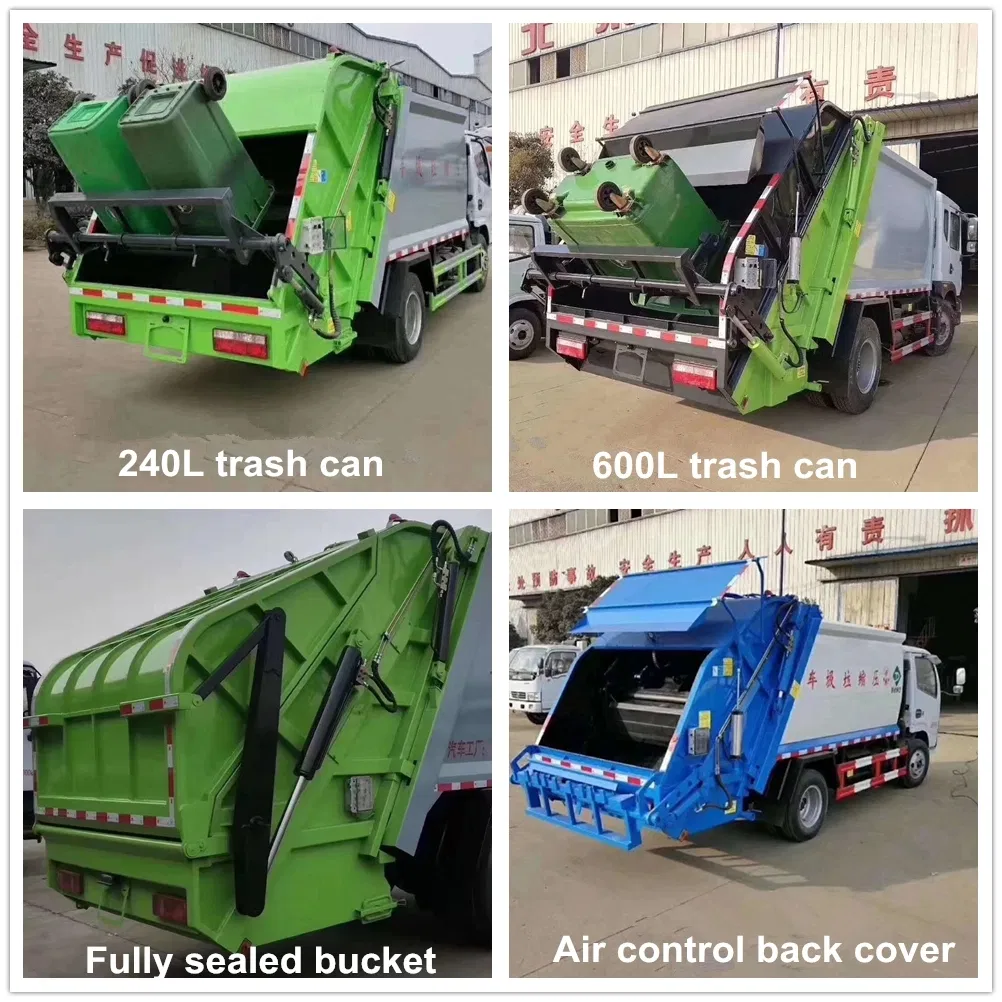

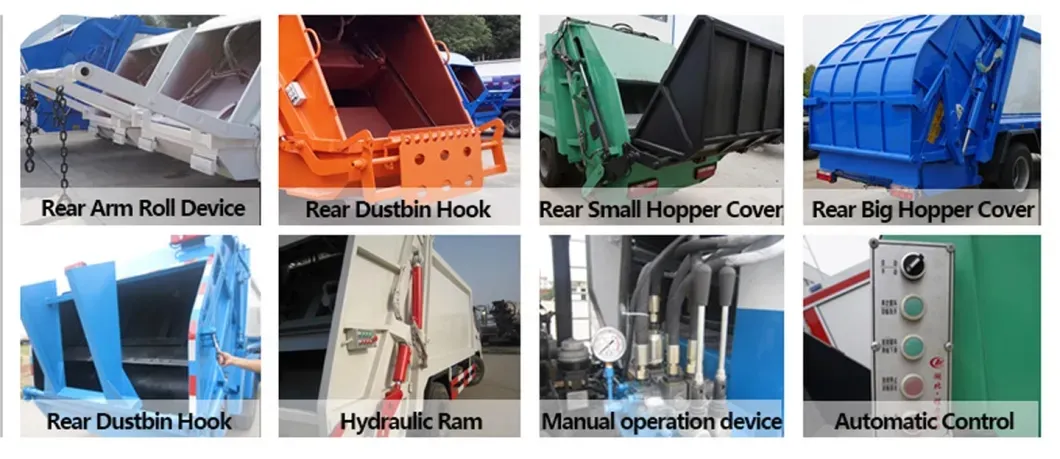

| 1: Can choose 240L (single bin,double bins) or 360L, 660L, 1100L standard bin lifting and turnover mechanism, can also choose ground hopper and other kinds of loading mechanism. | ||
| 2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. | ||
| 3: With working device of emergency braking stop button. | ||
| 4: Garbage body use frame design, elegant, strong structure, large effective capacity. | ||
| 5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||
| 6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the accessibility ,make the compression ratio up to 2.5:1, the garbage can reach more then 600~800kg/Cb after compression. | ||
| 7: All other standard accessories: Tool kit, English manual. | ||
Shacman Rear Loaded Rhd 4X2 15m3-18m3 New Dump Garbage Compactor 14-16 Ton Refuse Collection Truck
FAQ 3: How about the after sale service?
A: First we choose the popular brand in local market with after sale service. Second, we can delivery spare parts
and engineers to your place. Make maintenance plan and provide commissioning service.
FAQ 4: How about gurantee and warranty?
A: We provide 16 years spare parts service for exporting vehicles, warranty one year from B/L date.
Warranty of special model vehicle will be negotiated.
