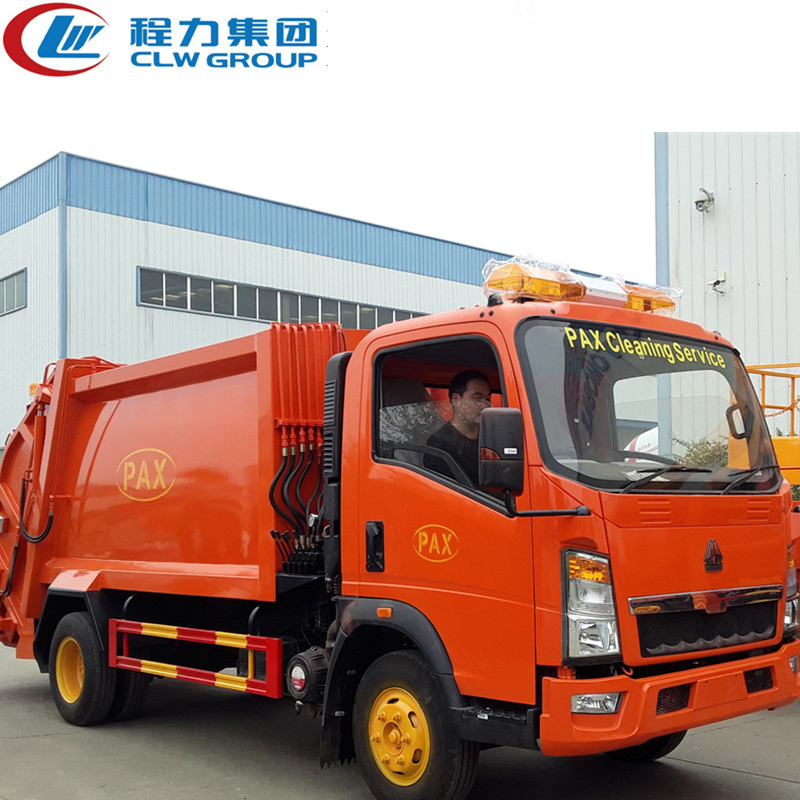

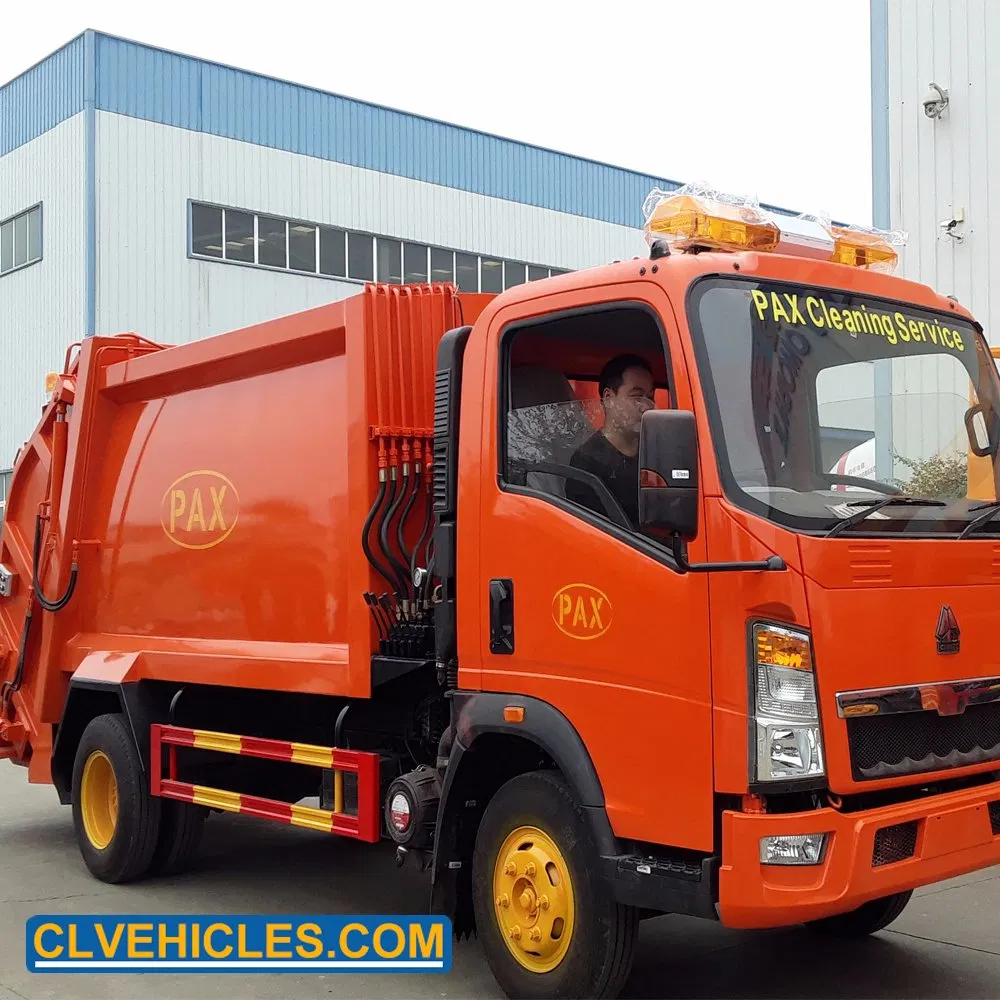

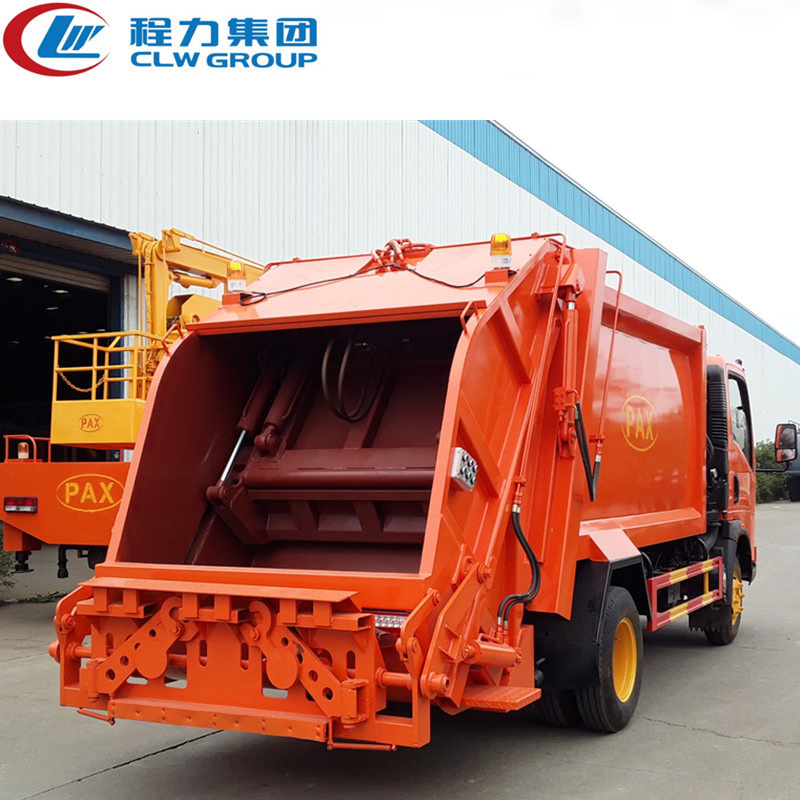

Sinotruk HOWO 4X2 10cbm 10m3 Compactor Garbage Truck
SINOTRUK HOWO 4X2 10CBM 10M3 Compactor Garbage TruckApplications:Compressed garbage truck is composed of sealed garbage compartment, hydraulic system and operating system.Vehicle is fully sealed type, compression, to dump all, compression in the process of sewage into the water, more thoroughly solv......
Send Inquiry
Product Description

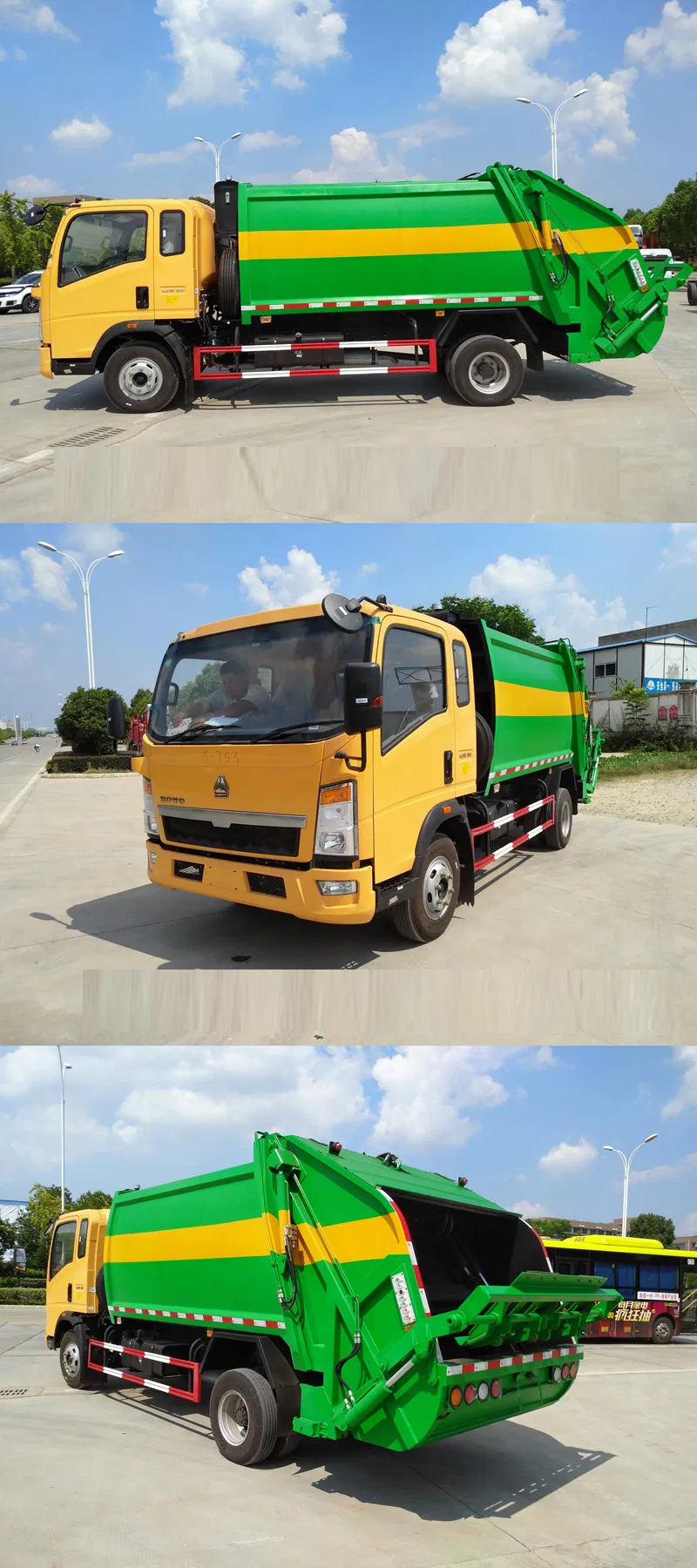

SINOTRUK HOWO 4X2 10CBM 10M3 Compactor Garbage Truck
Applications:
Compressed garbage truck is composed of sealed garbage compartment, hydraulic system and operating system.Vehicle is fully sealed type, compression, to dump all, compression in the process of sewage into the water, more thoroughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people, the key parts adopt imported components, high pressure, good sealing, convenient operation, safety, etc.Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.
Competitive Advantage:
1. Simple and convenient garbage collection method: change the dirty and disorderly appearance of garbage cans in the streets of the city to eliminate
secondary pollution.
2. High compression ratio and large loading: the maximum crushing pressure is up to 12 tons, and the loading capacity is equal to two and a half times of
the same tonnage of uncompressed garbage.
3. Operation automation: the computer control system is adopted, and the driver is required to operate all the filling and unloading operations, which not
only reduces the labor intensity of sanitation workers, but also greatly improves the working environment
4. Good economy: when the special equipment works, the computer control system automatically controls the throttle.
5. Double security system: the operating system has the dual functions of computer control and manual control, which greatly ensures and improves the
utilization rate of vehicles.
6. Turning mechanism: optional turning mechanism with garbage can (or bucket).
TECHNICAL PARAMETERS
Our Company Export Successful Case:
For more Compactor Garbage Truck information, please feel free to contact me or send an inquiry to me
Applications:
Compressed garbage truck is composed of sealed garbage compartment, hydraulic system and operating system.Vehicle is fully sealed type, compression, to dump all, compression in the process of sewage into the water, more thoroughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people, the key parts adopt imported components, high pressure, good sealing, convenient operation, safety, etc.Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.
Competitive Advantage:
1. Simple and convenient garbage collection method: change the dirty and disorderly appearance of garbage cans in the streets of the city to eliminate
secondary pollution.
2. High compression ratio and large loading: the maximum crushing pressure is up to 12 tons, and the loading capacity is equal to two and a half times of
the same tonnage of uncompressed garbage.
3. Operation automation: the computer control system is adopted, and the driver is required to operate all the filling and unloading operations, which not
only reduces the labor intensity of sanitation workers, but also greatly improves the working environment
4. Good economy: when the special equipment works, the computer control system automatically controls the throttle.
5. Double security system: the operating system has the dual functions of computer control and manual control, which greatly ensures and improves the
utilization rate of vehicles.
6. Turning mechanism: optional turning mechanism with garbage can (or bucket).
TECHNICAL PARAMETERS
| Truck Specification | |||
| Chassis model | CLW5083YSLJ01S5 | ||
| Cab | Dongfeng / SINOTRUK single row cab | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 115 | ||
| Overall dimension(mm) | 6865×1870×2200 | ||
| GVW( kg) | 8200 | ||
| Mass in working order ( kg) | 2460 | ||
| Wheelbase(mm) | 3800 | ||
| F/R track base (mm) | 1569/1530 | ||
| F/R overhang (mm) | 1068/1997 | ||
| Approach/Departure Angel | 22/25 | ||
| Tire | 7.50-16LT 14PR | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 5-speed | ||
| Bridge | Front axle | 3T | |
| Rear axle | 5T | ||
| Enging | Model | YC4E140-33 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 4257 | ||
| Max output power/rotate speed (hp /rpm ) | 140/2800 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | material : Q235,Thickness :4(mm) side /4(mm) rear | ||
| dirty tank volume | 7m³ / 8M3 9M3 10M3 ETC | ||
| filler volume | 500L | ||
| filing time(s) | 8~10s | ||
| filling cycle time(s) | 50~60s/once | ||
| Discharge type | Dumping | ||
| Time for dumping | 30-40S | ||
| Hydraulic pressure | 16mpa | ||
| Controlling way | Manualy and electrical control | ||

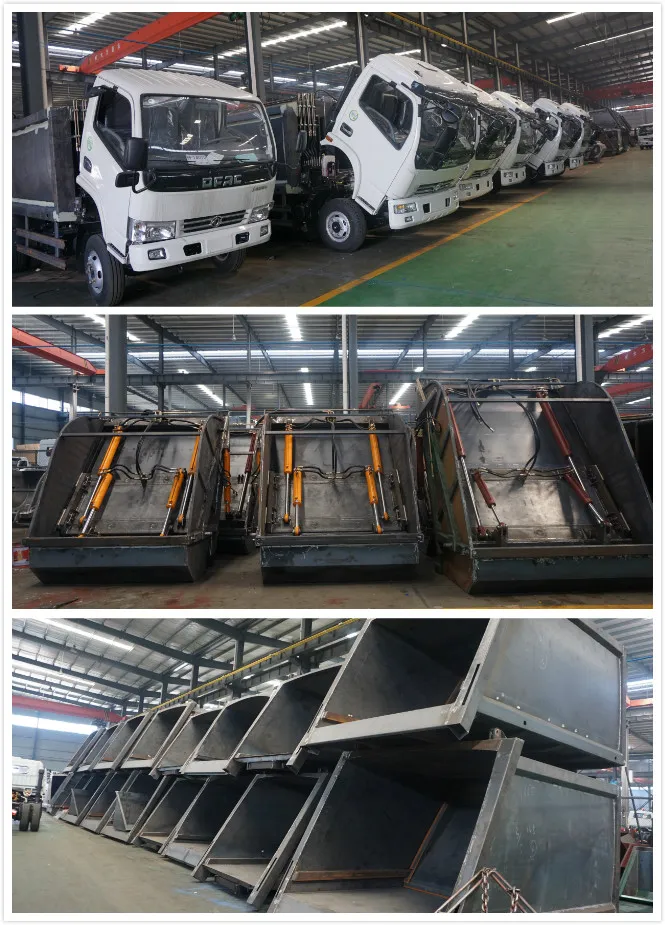

Our Company Export Successful Case:
For more Compactor Garbage Truck information, please feel free to contact me or send an inquiry to me
