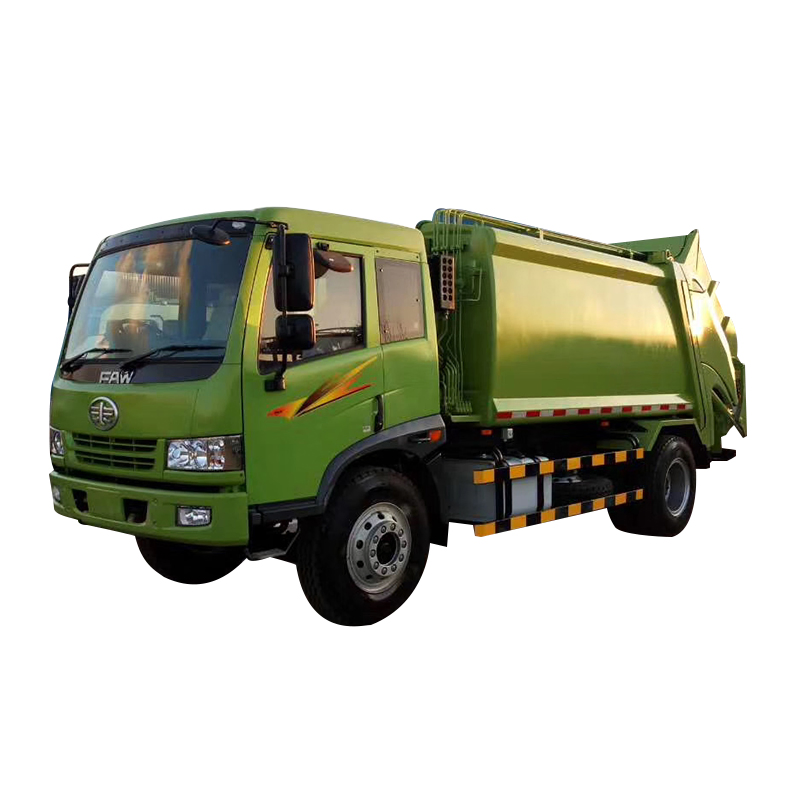

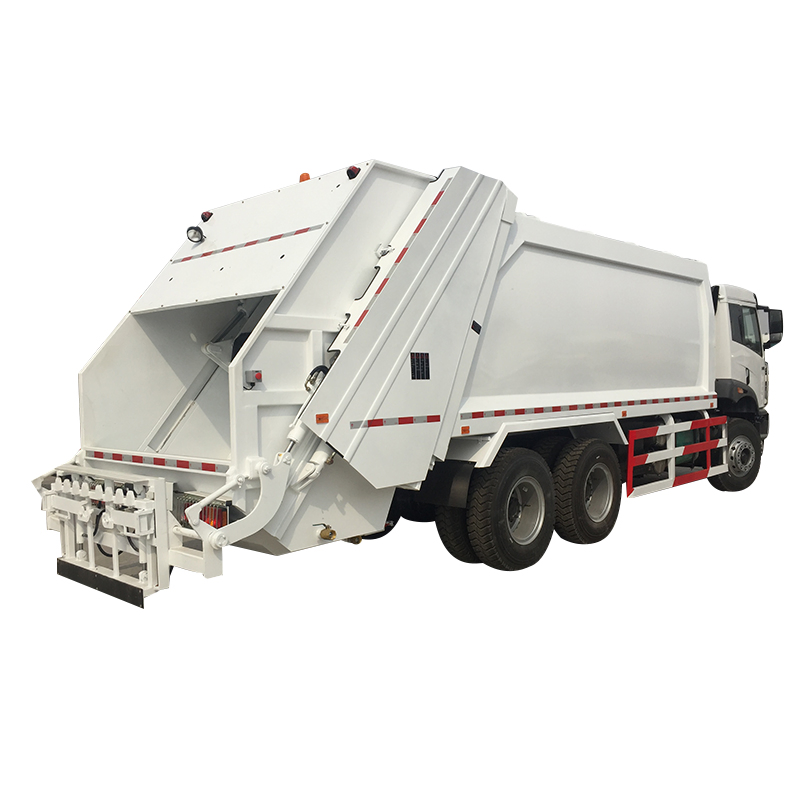

Suprised price Compression Refuse Collector truck
18m3 FAW garbage truck/ refuse compactor truck/ garbage compactor truckProduct description15-20 Tons Refuse TruckType: HTC5250ZYSCCabin: New J5P with A/CEngine Model: WP10.340E32Emission standard: Euro 2Power (KW): 340HPClutch model: 430mm, single plate, dry, diaphragmGearbox Model: 9JS135 transmiss......
Send Inquiry
Product Description
18m3 FAW garbage truck/ refuse compactor truck/ garbage compactor truck
Product description
15-20 Tons Refuse Truck
Type: HTC5250ZYSC
Cabin: New J5P with A/C
Engine Model: WP10.340E32
Emission standard: Euro 2
Power (KW): 340HP
Clutch model: 430mm, single plate, dry, diaphragm
Gearbox Model: 9JS135 transmission
Rear Axle: CA435 wheel reduction axle
Rear Axle speed ratio: 5.143.
Wheel & tire: 12.00-20, Model 16Ply Rating
Axle Base: 4300+1350mm
Fuel Tank: 300L
Overall dimensions Length: 9695mm
Width: 2500mm
Height: 3500mm
Front overhang(loaded): 1375mm
Rear overhang(loaded): 2720mm
Passing angle(loaded) Approach angle: 19
Departure angle: 13
Parameter Curb weight (kg): 20500
Gross truck weight(kg) 32000 kg
Volume of tank: 20 m3
Volume of Sewage Tank: 400 L.
Product parameters

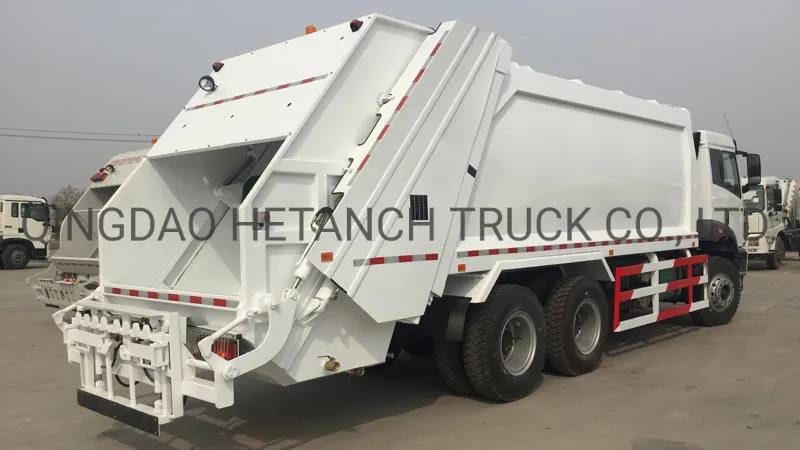

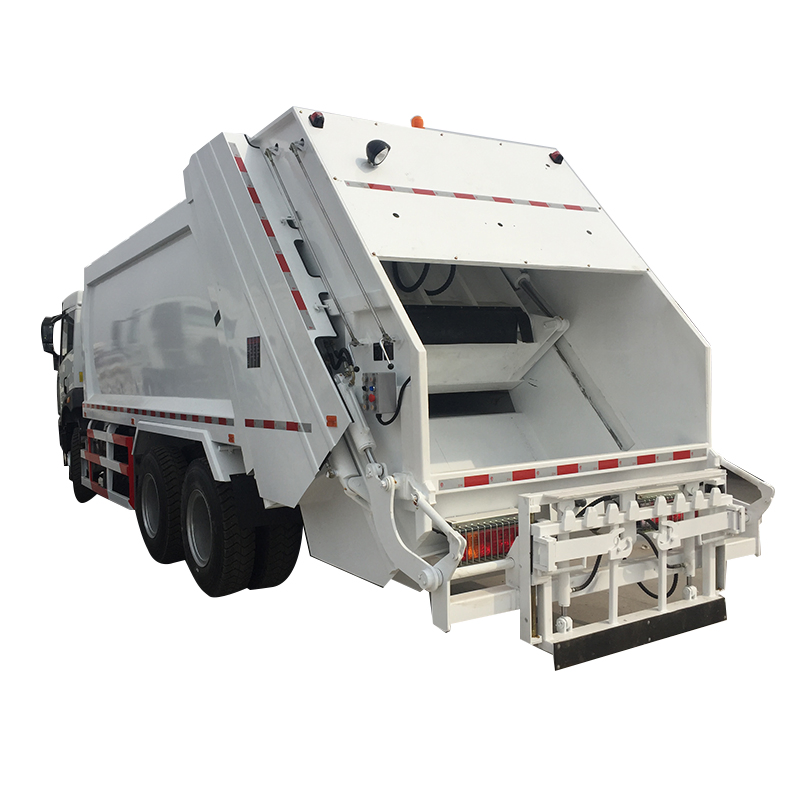

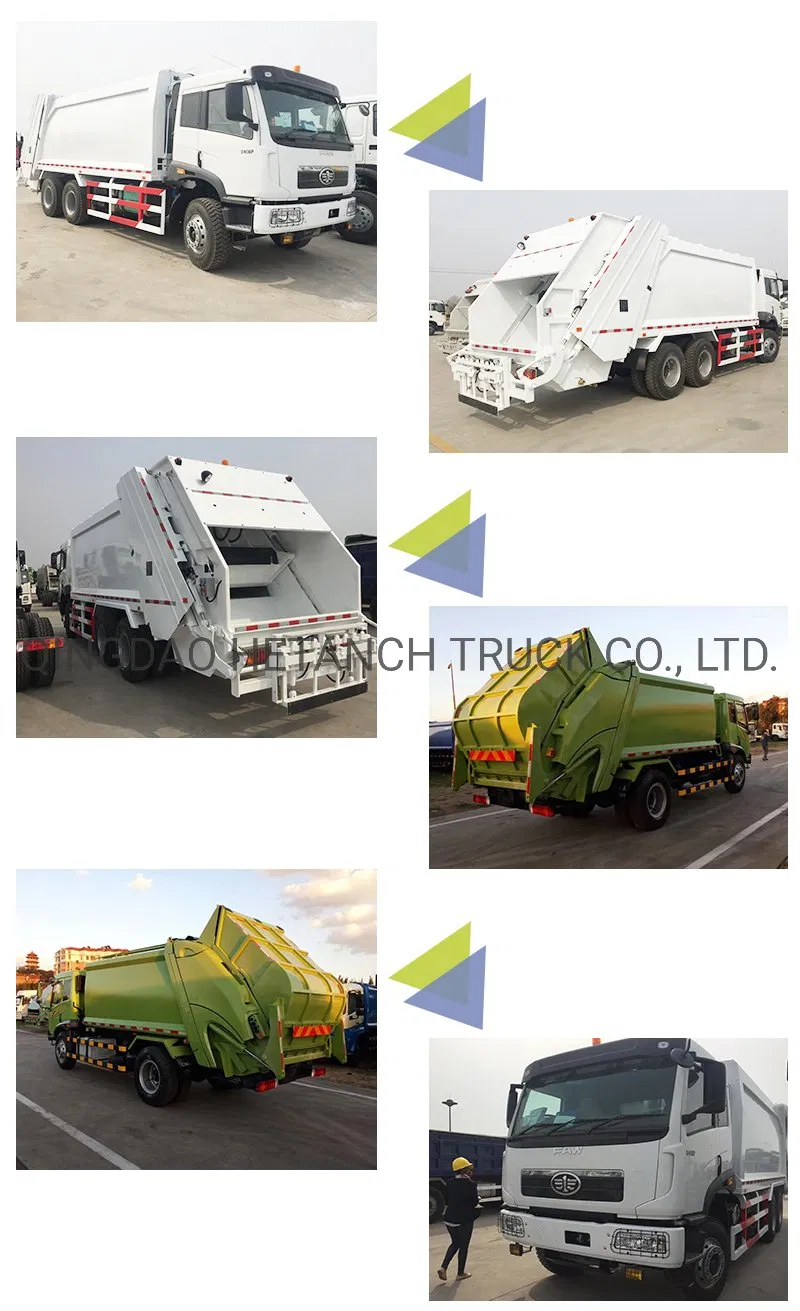

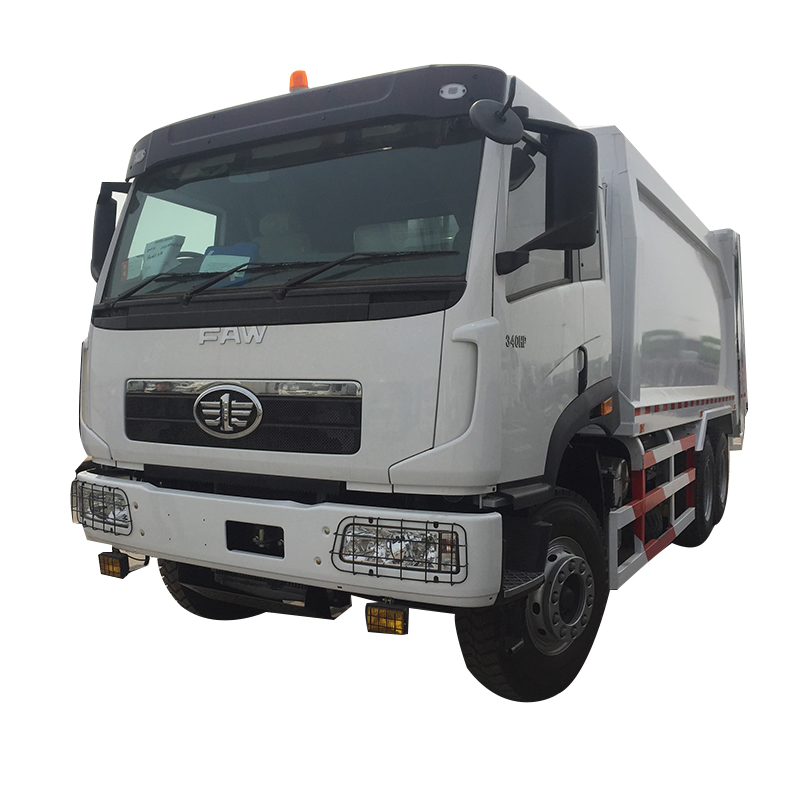

Product Show

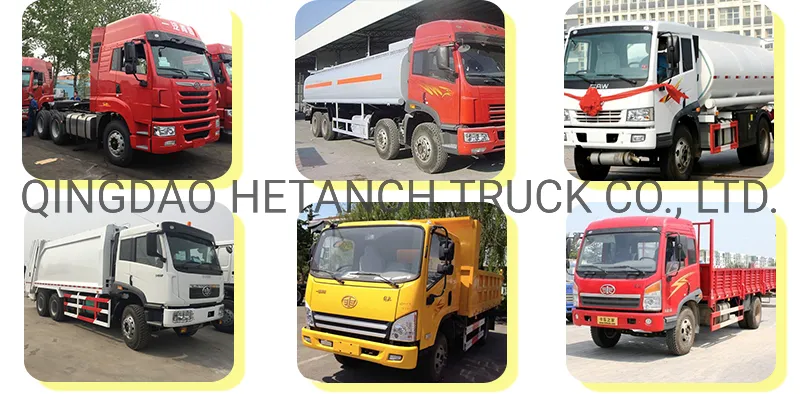

Faw series
NOTE
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body, Mobile stage truck & body, Mobile shop, Mobile kitchen, Cargo van, Medical waste transport truck & body, Box trailer, Any other special purpose vehicle & vehicle bodies, etc.
Certifications
Company information
We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.
From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appreciate our clients' fully trust to us, and remember the responsibility every moment.
There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.
Respectful , Faithful , Studious , Innovative . Our progress never could leave your supporting. Warmly welcome your coming!
Customer visit

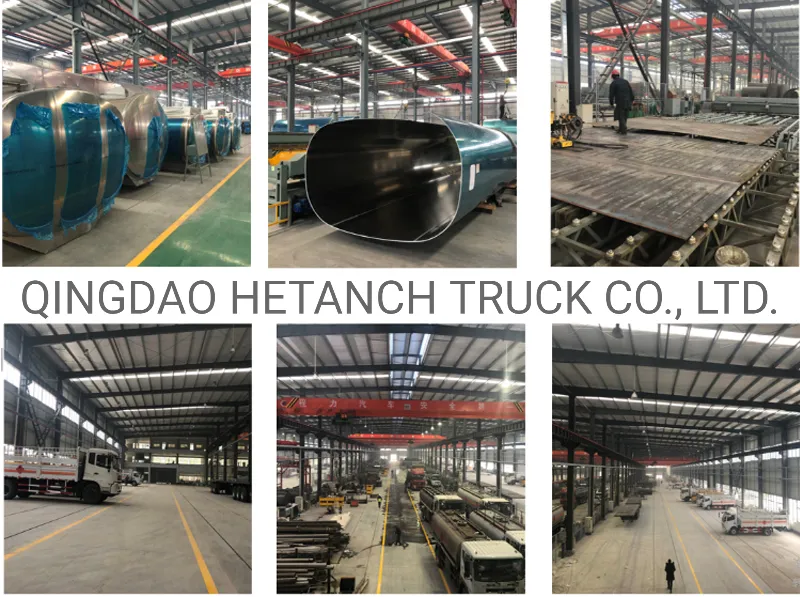

Factory workshop

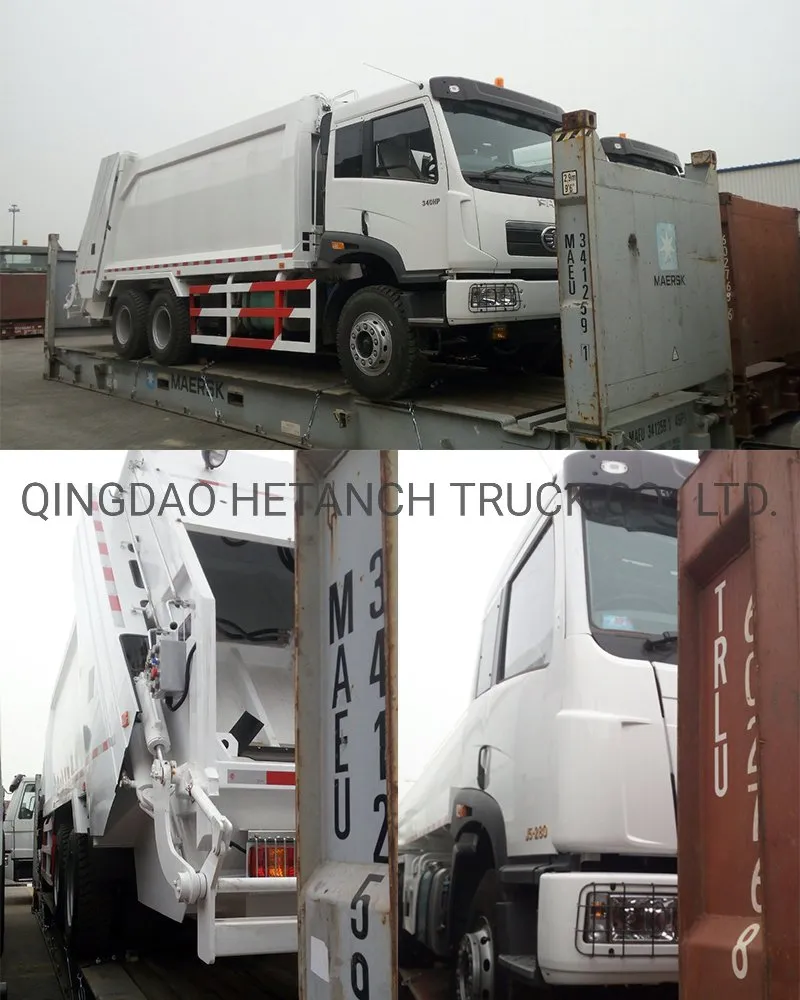

Packaging & Shipping
Product description
15-20 Tons Refuse Truck
Type: HTC5250ZYSC
Cabin: New J5P with A/C
Engine Model: WP10.340E32
Emission standard: Euro 2
Power (KW): 340HP
Clutch model: 430mm, single plate, dry, diaphragm
Gearbox Model: 9JS135 transmission
Rear Axle: CA435 wheel reduction axle
Rear Axle speed ratio: 5.143.
Wheel & tire: 12.00-20, Model 16Ply Rating
Axle Base: 4300+1350mm
Fuel Tank: 300L
Overall dimensions Length: 9695mm
Width: 2500mm
Height: 3500mm
Front overhang(loaded): 1375mm
Rear overhang(loaded): 2720mm
Passing angle(loaded) Approach angle: 19
Departure angle: 13
Parameter Curb weight (kg): 20500
Gross truck weight(kg) 32000 kg
Volume of tank: 20 m3
Volume of Sewage Tank: 400 L.
Product parameters
| (CHASISMODEL) | CA3250 |
| OVERALL(LXWXH)DIMENSIONS (mm) | 9695X2500X3190 |
| PRESSURE OF HYDRAULIC SYSTEM (MPa) | 30 |
| (kg) KERB MASS | 11 500 |
| (kg) LOAD WEIGHT | 20500 |
| (kg/h) MAX SPEED | 75 |
| ENGINE | WP10.340E32 |
| (KW/r/min)ENGINE OUTPUT | 273/1900 |
| GEAR BOX (MANUEL) | 9JS135 |
| tire | 12.00-20-16 tyre |
| ( m3) VOLUME OF BODY | 19-20 |
| Garbage compression density | >800kg/m3 |
| ( m3) VOLUME OF FILLER | 1.9 |
| (s)ONE LOADING CYCLE | ≤25 |
| (s)FILLER LIFT TIME | 8-10 |
| (s)ONE UNLOADING TIME | ≤40 |
| (L)SEWAGE TANKER | >400 |
| Manipulator turnover weight | >600kg |
| Type of Manipulator turnover | 300L Round trashcan |
| 240L Square trashcan |
Faw series
NOTE
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body, Mobile stage truck & body, Mobile shop, Mobile kitchen, Cargo van, Medical waste transport truck & body, Box trailer, Any other special purpose vehicle & vehicle bodies, etc.
Certifications
Company information
We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.
From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appreciate our clients' fully trust to us, and remember the responsibility every moment.
There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.
Respectful , Faithful , Studious , Innovative . Our progress never could leave your supporting. Warmly welcome your coming!
Customer visit
Factory workshop
Packaging & Shipping
