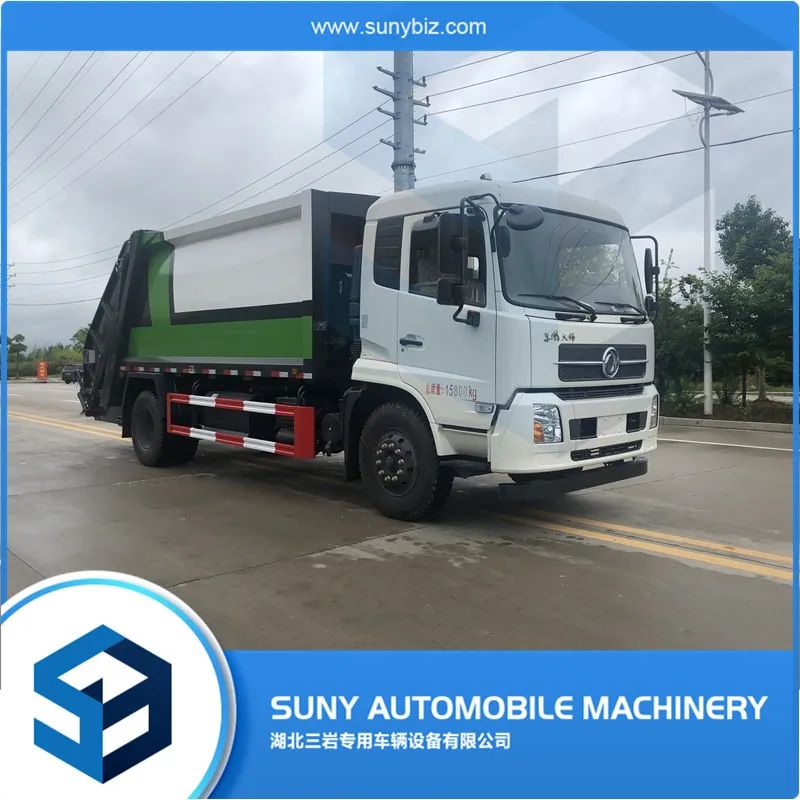

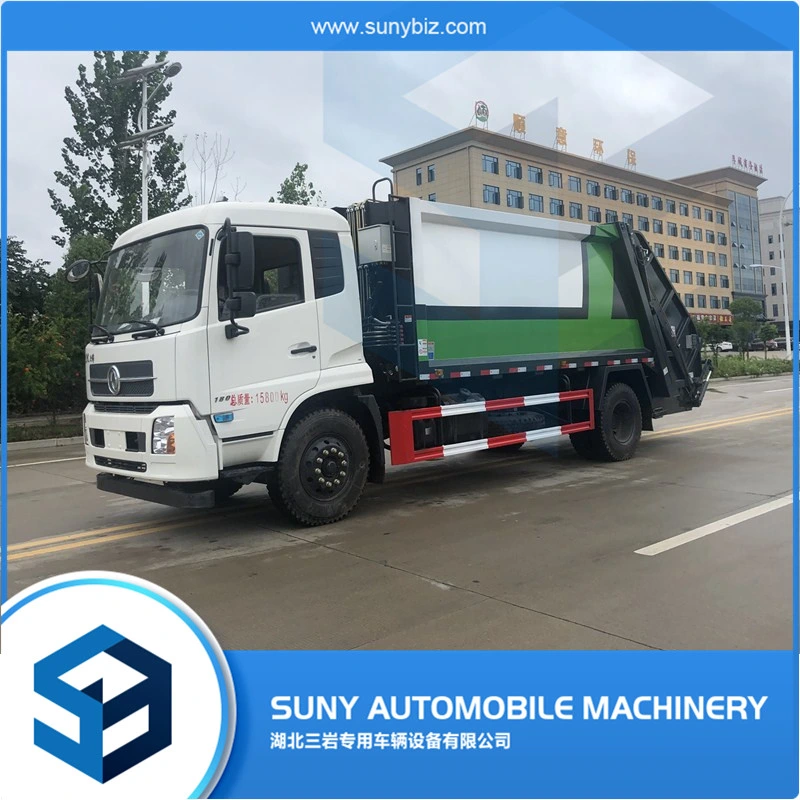

Zstruck Automated Waste Collection Vehicle 12 Cbm Compactor Garbage Truck
gas control rear cover compression garbage truck Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with German......
Send Inquiry
Product Description

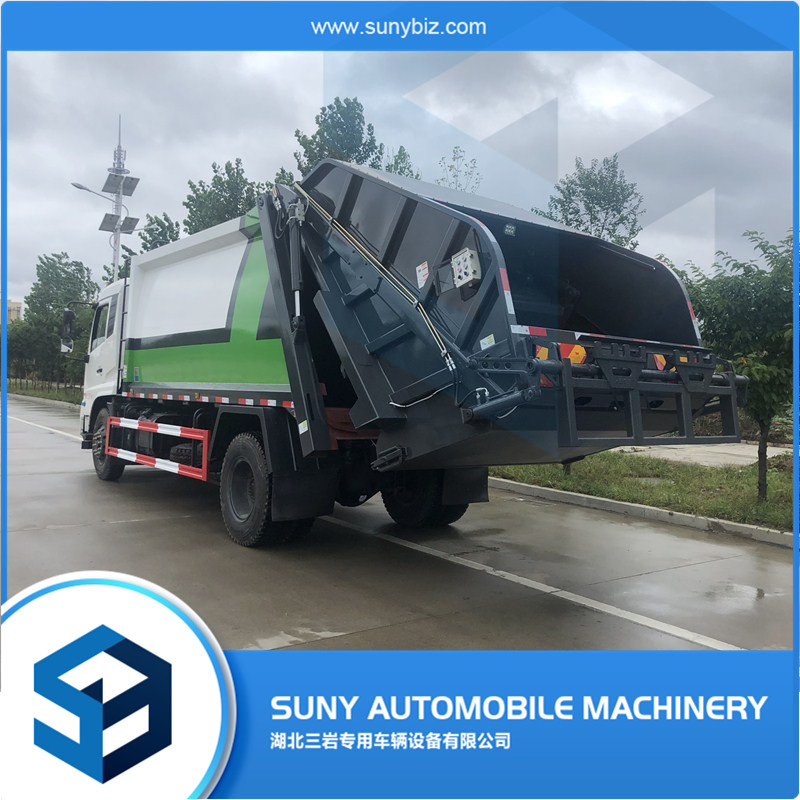

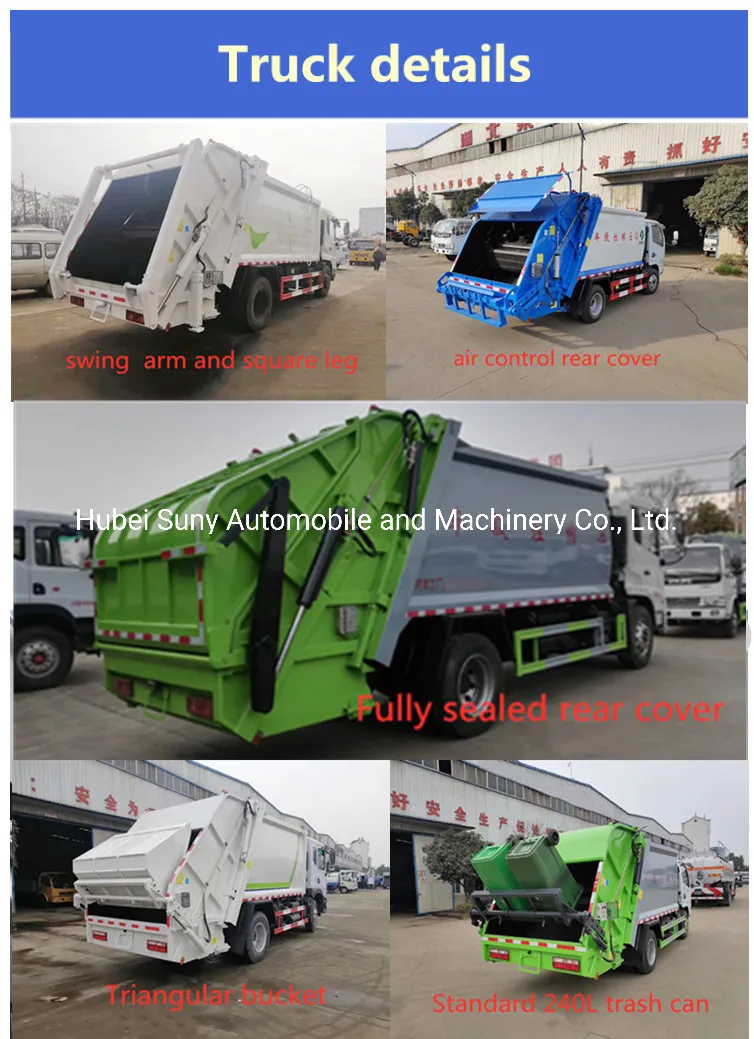

gas control rear cover compression garbage truck
Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.
| Vehicle Description | ||
| Overall dimensions | 8800*2500*3350mm | |
| GVW | 15800kg | |
| Curb weight | 9905kg | |
| Chassis brand | DONGFENG KR | |
| Traction type | 4*2, left hand drive | |
| Chassis Description | ||
| Chassis model | DF | |
| Cab | one and a half row cab, forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, manual windows, manual lock, air conditioner. | |
| Wheelbase | 4500mm | |
| Tire specification | 10.00-20 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | B210 33 |
| Emission level | Euro 2 | |
| Displacement/output | 5900ml/155kw | |
| Horse power | 210hp | |
| Gear box | Model | DF6S900 OD |
| Number of gears | 6 forward gears& 1 reverse | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 6T- Elliot type, I beam section |
| Rear | 10T-Single reduction, ratio 5.286 | |
| Suspension | Front | 8- Leaf spring with shock absorber |
| Rear | 9+8-Leaf spring | |
| Fuel tanker | Type | Steel fuel tank, with lockable cap |
| Capacity | 120-200L | |
| Up-part description | ||
| Fact cubage | 12cbm | |

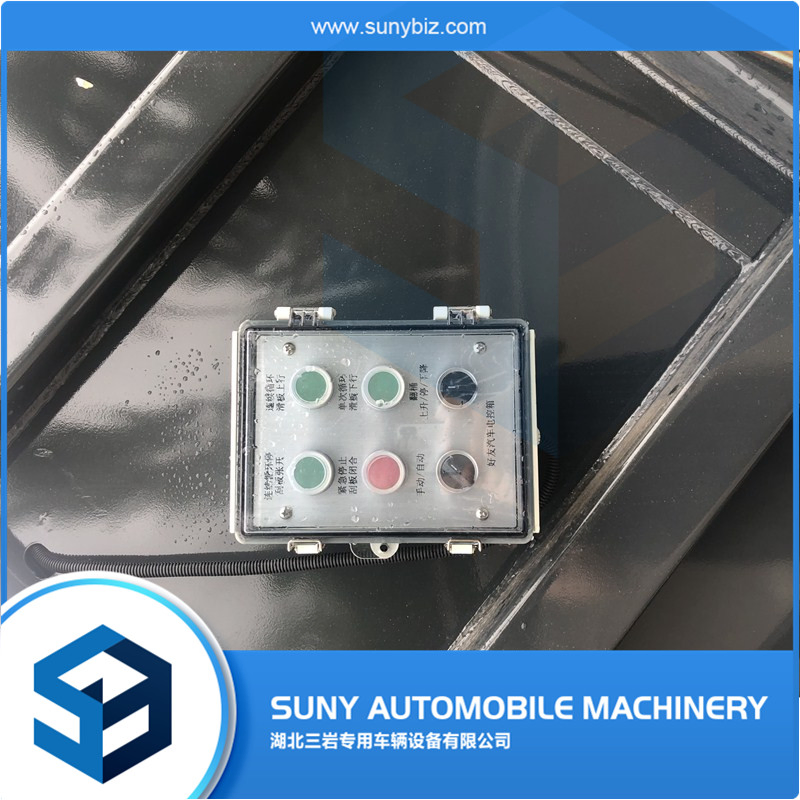

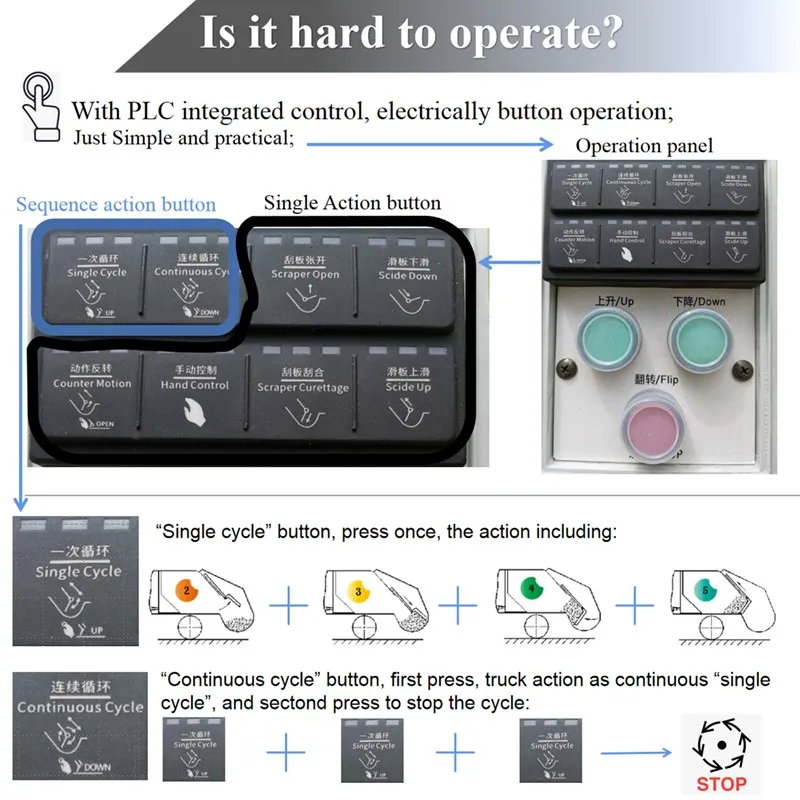

| Control system | Electrically Controlled Hydraulic + Hand Hydraulic | |

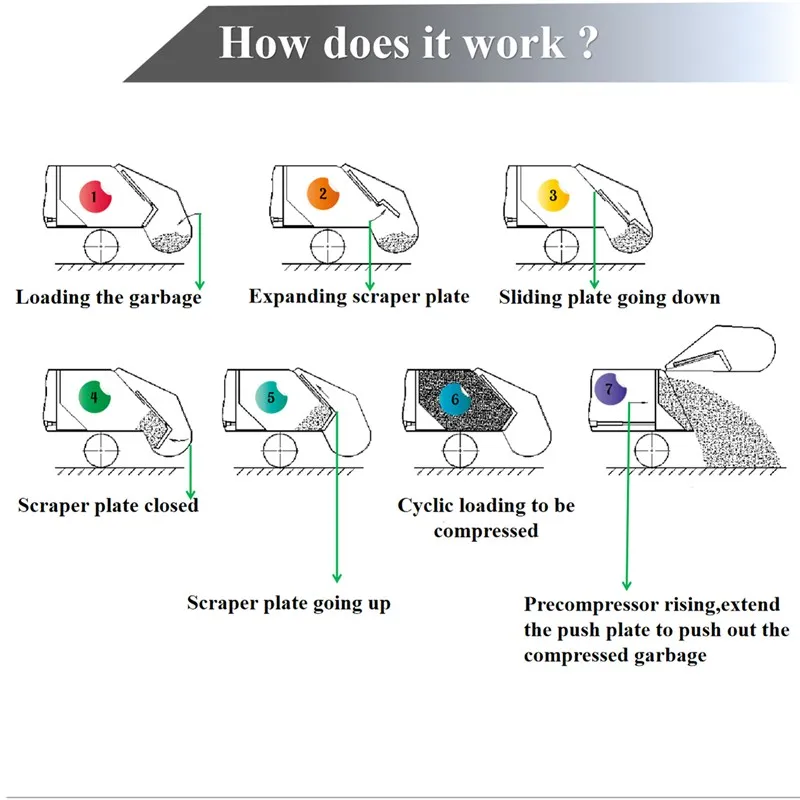

| Type of compactor | Two-way, push in the front, compressor in the back | |

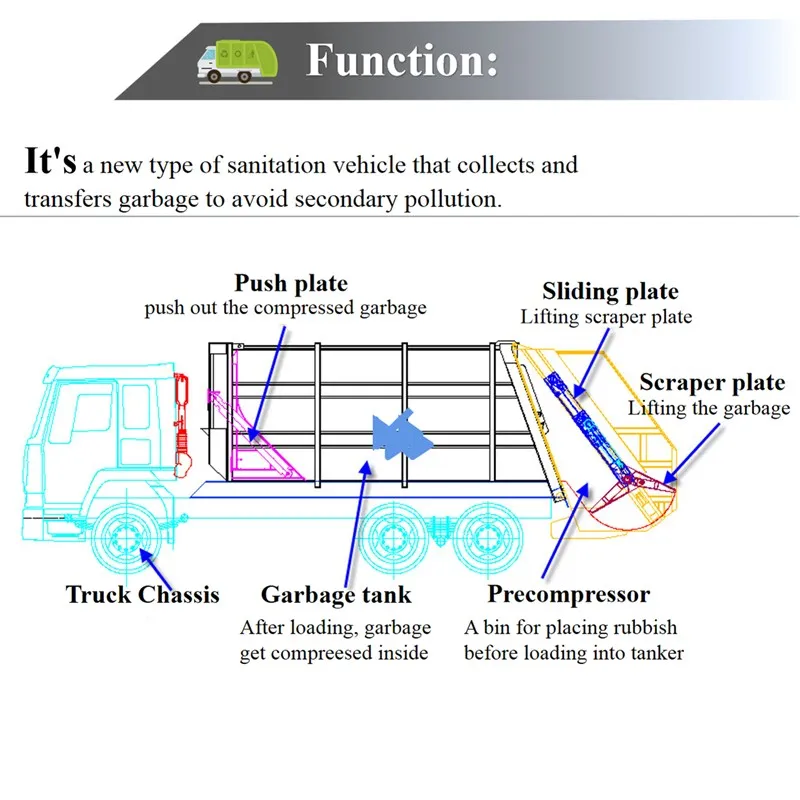

| Standard equipment | Equipped with garbage tanker, precompressor, push shovel, hydraulic transmission system, electrical controlling system. | |
Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and
quality win for the purpose of customers' intentions.
We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which
are widely used in environmental protection, city construction, transportation and many other fields.
Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers
all over the world and Chinese main manufactures.
With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such
as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and
efficiency, meanwhile continuously promoting our service for all the customers all over the world!
RFQ
1. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.
We will show you photos of the products and packages before you paying the balance.
2. What's your minimum quantity?
1 set.
3. What is your packing?
Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.
4. How about delivery time?
Generally speaking, 25 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
5.How to judge the quality of products?
We will show you photos and videos, trading order. You are welcome to visit our factory at any time.
6.Why you trust and choose us?
--Complete production line, from trailer Design to Delivery.
-- ISO 9001: 2008 and CCC quality certificate.
--Use 100% famous brand spare parts you want.
-- Accept customization requirements.
--We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.
--We accept flexible payment terms,T/T, L/C, or other .
7. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
